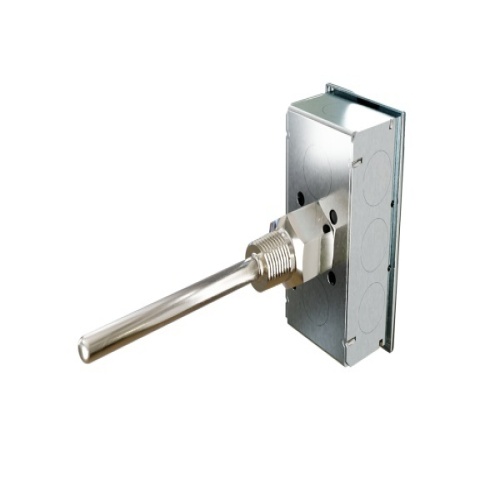

ACI 119660 A/20K-I-6"-GD 20K Ohm Immersion Thermistor
Normally In Stock
Code: 174568
ACI 119660 20,000 Ohm Thermistor, Immersion, Welded Well, 6", Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$51.84
Sale Price
$43.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Thermistor Immersion Series features a ¼” diameter stainless steel probe with two, 14 inch 22 AWG Etched Teflon colored lead wires depending on the probe length ordered to differentiate the sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. The immersion sensors include a welded thermowell “-I” version but can be ordered without the welded thermowell “-INW” version. The “INW” version includes a standard ½” NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application. Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet. Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
20K Ohm
(Instrument-Sensor) Mounting
Immersion
Features
The ACI Thermistor Flexible Averaging Series features an 18 AWG Plenum Rated cable sensingelement with two, 12 inch 22 AWG Etched Teon colored lead wires to dierentiate thedierent sensor types
The sensors in this series are multi-point
Averaging sensors provide abetter overall average temperature of the actual air inside larger ducts when compared to thatof a single point sensor
All exible averaging sensors are limited to being used in applicationswhere operating temperatures are limited and high humidity, chemical resistance, and UV lightsources aren’t required
Each of the sensing elements is protected using a dual wall adhesivelined heat shrink tubing to provide a basic level of moisture protection
The sensor lengthshould be determined by the size of your duct
Standard enclosure options include agalvanized junction box “-GD” or plastic duct enclosure with hinged cover “-PB”
Each unit includes nylon wire ties and mounts for mounting.Optional copper capillary or universal plastic mounting clips, NEMA/IP Weather proof enclosures and NIST Certicates are available as referenced inthe ordering grid on the back of the product data sheet.
