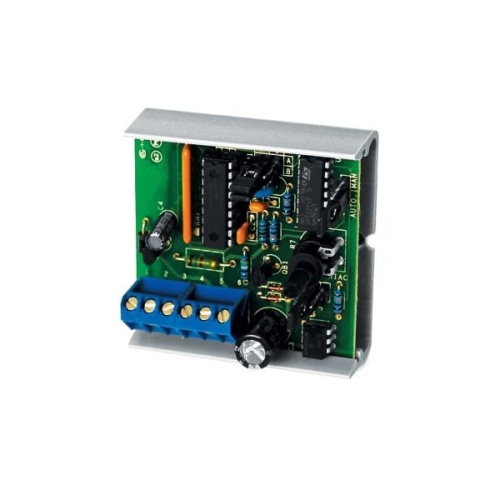

ACI 102634 PTA2 VERSION #2 Pulse Width Modulation (PWM) Analog Output Input Module
Normally In Stock
Code: 174090
ACI 102634 Pulse Width Modulation Input (0 - 10 sec Duty Cycle), Analog Output (0-10VDC), Version 2, (0.023 to 6s Selectable)
Condition: New
Usually ships Same Day or Next Day$134.06
Sale Price
$111.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The PTA2 accepts a timed contact, or solid state closure, from a microprocessor controller and converts it to a linear analog output with 255 steps of resolution. The PTA2 will not wrap around if an excessively long pulse is received. Four input pulse rates are jumper selectable. The input signal is optically isolated and can accept either positive or negative polarity. The PTA2 includes triac adapter circuitry ( jumper selectable) for a triac input. The PTA2 has a jumper selectable manual override which will allow modulation of the output between 0-10VDC to verify proper operation of the controlled device. The last output signal is held until the PTA2 receives the end of the next pulsed input signal. The PTA2 is covered by ACI's Two (2) Year Limited Warranty.
Specifications
Component
Input Module
Manufacturer
ACI
(Instrument-Sensor) Output Signal Type
Analog Output
(Instrument-Sensor) Type
Pulse Width Modulation (PWM)
