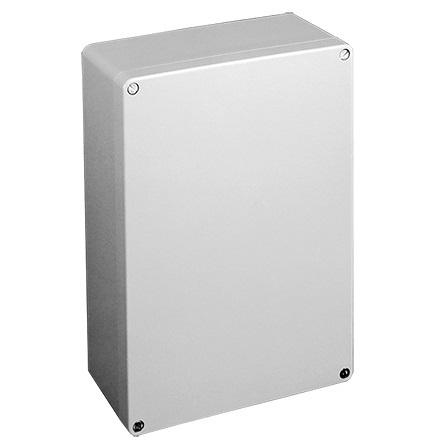

nVent Hoffman CCA36169 Compact Aluminum Enclosure
Normally In Stock
Code: 17404
nVent Hoffman CCA36169 COMPACT Enclosure Cast Aluminum 14.20" x 6.30" x 3.50" (HxWxD) 360 mm x 160 mm x 90 mm. Type 4x Gray Cast Aluminum Enclosure with no hinge and screw cover. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$399.73
Sale Price
$333.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CCA36169 Compact Aluminum Enclosure For use in indoor or outdoor applications, these stylized enclosures protect components and controls in corrosive environments. Cast aluminum, Stainless steel captivated cover screws, RAL 7042 gray finish inside and out. Oil-resistant, seamless foam-in-place gasket, tongue-and-groove sealing construction, and threaded internal bosses provided for mounting optional panels, rails and other components. nVent Hoffman CCA36169 Compact Aluminum Enclosure
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
Gray
Enclosure Composition
Aluminum
Enclosure Depth
3.5"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
6"
Enclosure Height
14"
Line
Compact
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Component
Aluminum Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Oil-resistant, seamless foam-in-place gasket
Stainless steel captivated cover screws placed outside sealed area
Two to four grounding screws located on enclosure back wall
Tongue-and-groove sealing construction
No welded seams or sharp corners
Cast Aluminum material
Threaded internal bosses provided for mounting optional panels, rails and other components
Mounting holes provided in corners outside of gasketed area
Downloads
Hoffman CCA36169 2D DXF CAD.zipHoffman CCA36169 3D STEP CAD.zipHoffman CCA36169 CAD Drawing.zipHoffman CCA36169 CSA Certification.pdfHoffman CCA36169 Declaration of Compliance.pdfHoffman CCA36169 Dimension Drawing.gifHoffman CCA36169 EU Certification.pdfHoffman CCA36169 Spec Sheet.pdfHoffman CCA36169 UL Certification.pdf
