Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 173969
Phoenix Contact 1085642 DC charging cable EV-T1HPCC-DC500A-5,0M50ECBK11L
Normally In Stock
Phoenix Contact 1085642 EV-T1HPCC-DC500A-5,0M50ECBK11L ,Plastic,EVM-1 incordance with EN 50620 DC charging cable *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$5231.26
Sale Price
$4359.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

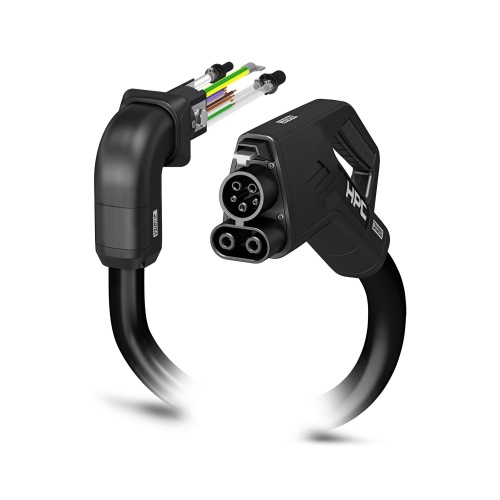

Phoenix Contact 1085642 The CHARX connect professional DC charging cable is designed for professional use and has a high power capacity, capable of delivering up to 700A in boost mode and 500A permanently. The cable features a cooled vehicle charging connector and cooled cable, with a length of 5m, and comes in a black straight configuration. It also includes a replaceable mating face frame, left-hand angled panel feed-through, variable-speed fan, and the Phoenix Contact CONTACT logo, adhering to international standards such as SAE J1772 and IEC 62196-3-1, making it suitable for charging electric vehicles (EVs) with direct current (DC).
Specifications
Amperage
2 Amp
Component
DC Charging Cable
Manufacturer
Phoenix Contact
Amperage
500 Amp
Features
Complete product range
The right charging cable for every application, from the carport to the charging park
Ultra-fast HPC charging, with temporary power up to 500 kW
Convenient handling due to the ergonomic design
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Additional safety thanks to integrated leakage sensors and a wear indicator in the cable sheath
Convenient communication interfaces via CAN bus and digital output
Maintenance-friendly replacement of the mating face frame without draining the coolant

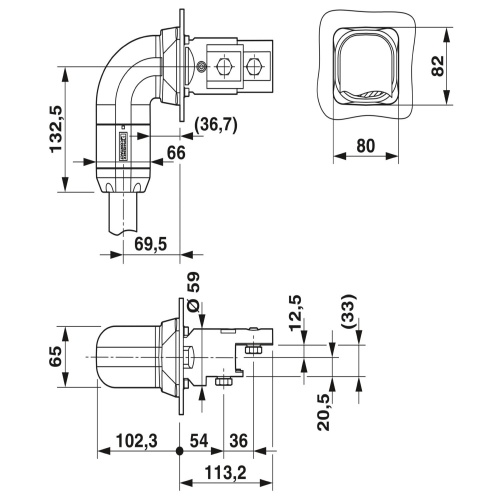

Integrated strain relief of single-core wires directly in the panel feed-through
Pre-assembled busbar screw connection for straightforward connection of the customer’s busbars or cable lug solutions
