Code: 173967

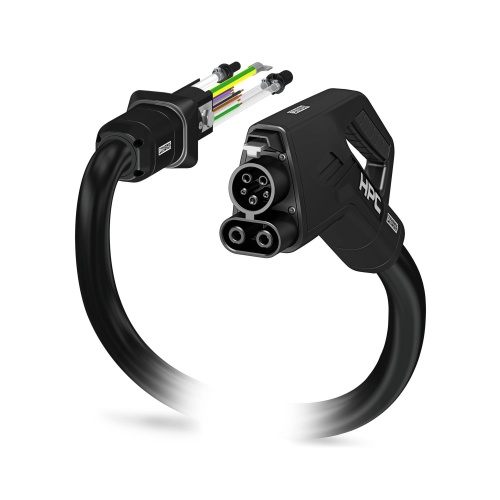

Phoenix Contact 1085641 DC charging cable EV-T1HPCC-DC500A-5,0M50ECBK11S
Normally In Stock
Phoenix Contact 1085641 EV-T1HPCC-DC500A-5,0M50ECBK11S ,Plastic,EVM-1 incordance with EN 50620 DC charging cable *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$5231.26
Sale Price
$4359.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1085641 The CHARX connect professional charging cable is a high-power DC charging solution suitable for professional use, featuring a maximum capacity of 700A in boost mode and 500A in permanent operation, with a voltage rating of 1000V DC. It boasts a cooled vehicle charging connector and cooled cable, measuring 5m in length, with a black color and straight design, including features such as a replaceable mating face frame, panel feed-through, variable-speed fan, and logos from the Phoenix Contact CONTACT and SAE/J1772 standards, making it compatible for direct current (DC) charging of electric vehicles.
Specifications
Amperage
2 Amp
Component
DC Charging Cable
Manufacturer
Phoenix Contact
Amperage
500 Amp
Features
Complete product range
The right charging cable for every application, from the carport to the charging park
Ultra-fast HPC charging, with temporary power up to 500 kW
Convenient handling due to the ergonomic design
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Additional safety thanks to integrated leakage sensors and a wear indicator in the cable sheath
Convenient communication interfaces via CAN bus and digital output
Maintenance-friendly replacement of the mating face frame without draining the coolant
Integrated strain relief of single-core wires directly in the panel feed-through
Pre-assembled busbar screw connection for straightforward connection of the customer’s busbars or cable lug solutions
