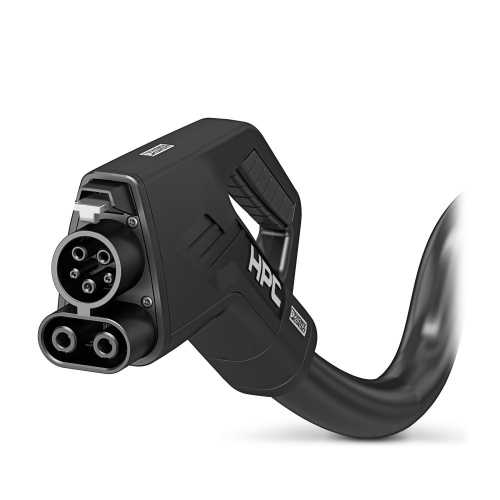

Phoenix Contact 1085658 DC charging cable EV-T1HPCC-DC500A-5,0M50ECBK11
Normally In Stock
Code: 173966
Phoenix Contact 1085658 EV-T1HPCC-DC500A-5,0M50ECBK11 ,Plastic,EVM-1 incordance with EN 50620 DC charging cable *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$4704.96
Sale Price
$3920.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1085658 The CHARX connection cable is a professional-grade, CCS type 1 charger capable of handling up to 700 A in boost mode and 500 A in permanent mode, with a maximum voltage of 1000 V DC. It features a cooled vehicle charging connector and cooled cable, measuring 5 meters in length, and is marked with a Phoenix Contact CONTACT logo for compliance with SAE J1772 and IEC 62196-3-1 standards, making it suitable for charging electric vehicles using direct current (DC).
Specifications
Component
Cable
Connector Amperage
2 Amp
Connector Amperage
500 Amp
Connector Material
Plastic
Connector protection
IP54
Manufacturer
Phoenix Contact
Connector Material
EVM-1 Incordance With EN 50620
Sub Component
DC Charging Cable
Features
Complete product range
The right charging cable for every application, from the carport to the charging park
Ultra-fast HPC charging, with temporary power up to 500 kW
Convenient handling due to the ergonomic design
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Additional safety thanks to integrated leakage sensors and a wear indicator in the cable sheath
Convenient communication interfaces via CAN bus and digital output
Maintenance-friendly replacement of the mating face frame without draining the coolant
