Code: 173832

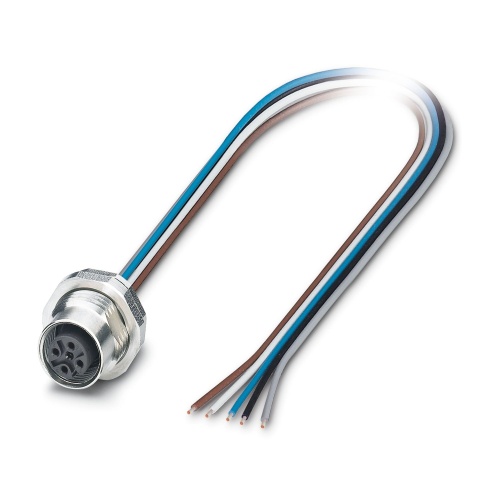

Phoenix Contact 1554717 Device connector rear mounting SACC-DSI-M12FS-5CON-PG9/0,5 VA
Normally In Stock
Phoenix Contact 1554717 - 5 Positions - CuZn - IP65, IP67, IP69, IP69K - Individual Wire Connection - M12
Condition: New
Usually ships Same Day or Next Day$45.55
Sale Price
$37.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

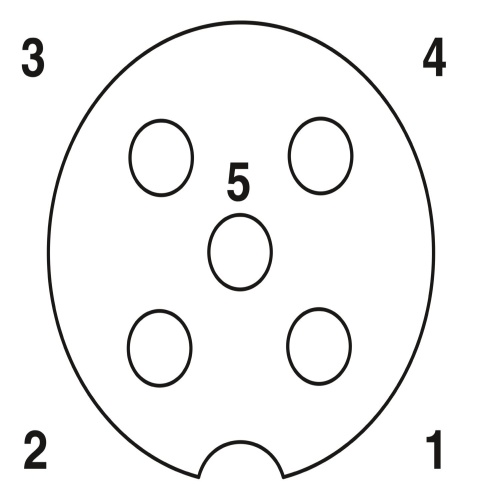

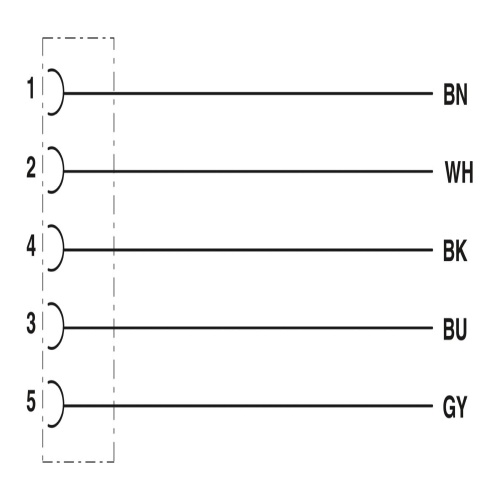

Phoenix Contact 1554717 This device connector features a universal rear mounting configuration with a 5-position socket that accepts M12-standard coding, specifically A-coded on the free end of the cable. The cable is designed for individual wire connection and has a length of 0.5 meters, comprising TPE litz wires potted within a insulation layer measuring 0.34 mm2.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
