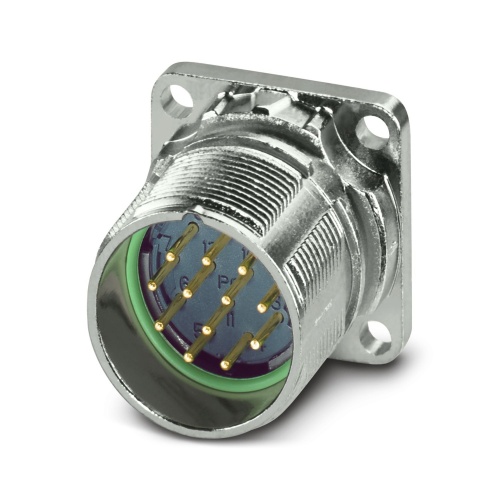

Phoenix Contact 1629088 Device connector front mounting M23-12P1N8AW500S
Normally In Stock
Code: 173749
Phoenix Contact 1629088 - 12 Positions - 14 Amp - IP68 - Crimp Connection
Condition: New
Usually ships Same Day or Next Day$12.82
Sale Price
$10.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

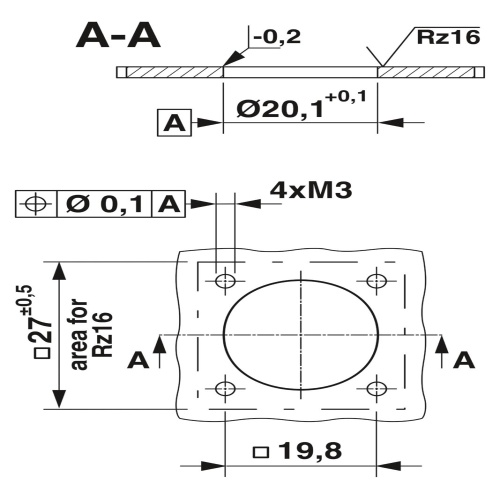

Phoenix Contact 1629088 The M23 device connector features a straight, shielded design for secure signal transmission and is compatible with the standard and ONECLICK fast locking system. It has 12 positions and rotates in a standard direction, with contact connections made via pin contacts that can be crimped into place using four flanges of Ø3.2 diameter, totaling dimensions of 26mm x 26mm. The connector meets lead-free requirements under RoHS II regulations, ensuring compliance with EU restrictions on hazardous materials to below 0.1% for Lead (Pb).
Specifications
Connector Amperage
14 Amp
Connector protection
IP68
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
12
Sub Component
Device Connector-Front Mounting
Features
Solutions with cross-manufacturer compatibility for standard and fast locking systems
Modern, consistent design for highly convenient operation
Crimping connection: vibration- and temperature-resistant assembly
All housing can be fitted with pin or socket contacts
Safe use in the field, thanks to high degree of protection
