Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 1534436 Device connector rear mounting SACCBP-M12MS-5CON-M16/1,0-920
Normally In Stock
Code: 173684
Phoenix Contact 1534436 - Device connector, rear mounting - 4 Positions - CuZn - IP67 - Cable Connection - SPEEDCON Locking - M12
Condition: New
Usually ships Same Day or Next Day$84.89
Sale Price
$70.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

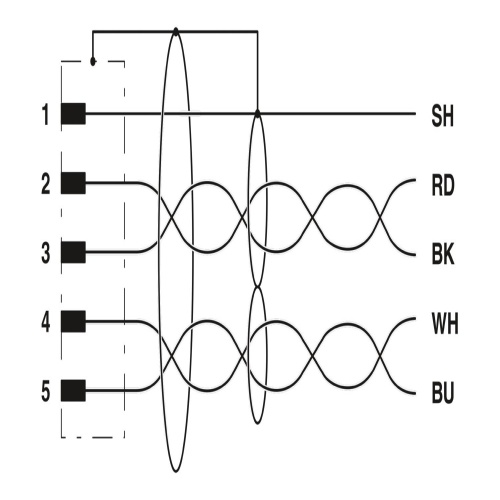

Phoenix Contact 1534436 This device connector features a rear mounting design and is compatible with CANopen and DeviceNet protocols, specified as a 5-position, PUR halogen-free unit with a red lilac RAL 4001 finish and shielded pin configuration, available with an M12-SPEEDCON coding on the free cable end, which can be mounted using an M16 x 1.5 rear mounting system, connected via a 1m long cable and meets lead-free requirements under RoHS II regulations, allowing for a smooth transition to alternative materials containing no more than 0.1% lead, which can be arranged in advance upon request.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
