Code: 173287
Phoenix Contact 1554720 Device connector rear mounting SACC-DSI-M12FS-8CON-PG9/0,5 VA
Normally In Stock
Phoenix Contact 1554720 - 8 Positions - CuZn - 8 Amp - IP65, IP67, IP69, IP69K - Individual Wire Connection - M12
Condition: New
Usually ships Same Day or Next Day$54.19
Sale Price
$45.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

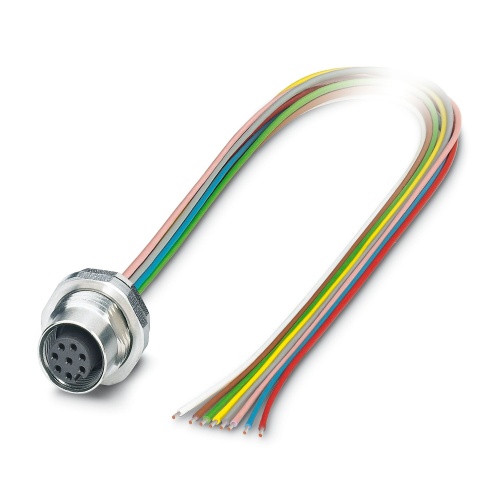

Phoenix Contact 1554720 A universal device connector with rear mounting features an 8-position straight M12-Standard socket that is coded A on the free end of a 0.5m cable with 0.25mm2 TPE litz wires that are individually wired and potted for added protection.
Specifications
Connector Amperage
8 Amp
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
8
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
