Code: 173275
Phoenix Contact 1554636 Device connector front mounting SACC-EC-M12MS-8CON-PG 9/0,5 VA
Normally In Stock
Phoenix Contact 1554636 - 8 Positions - CuZn - IP65, IP67, IP69, IP69K - Individual Wire Connection - M17
Condition: New
Usually ships Same Day or Next Day$55.56
Sale Price
$46.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

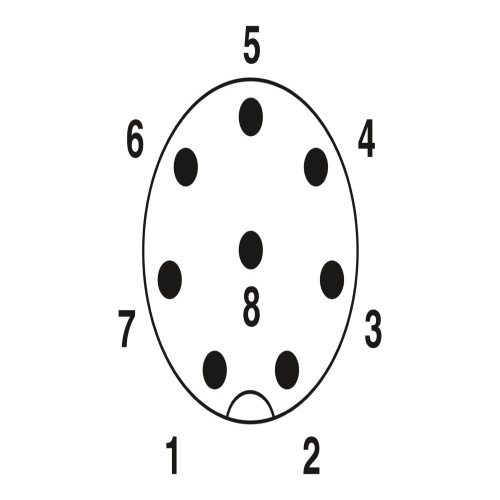

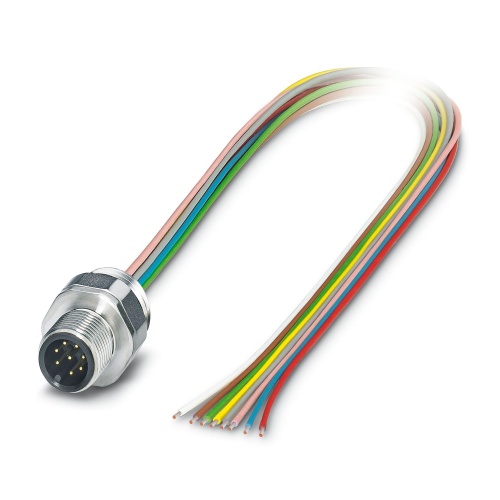

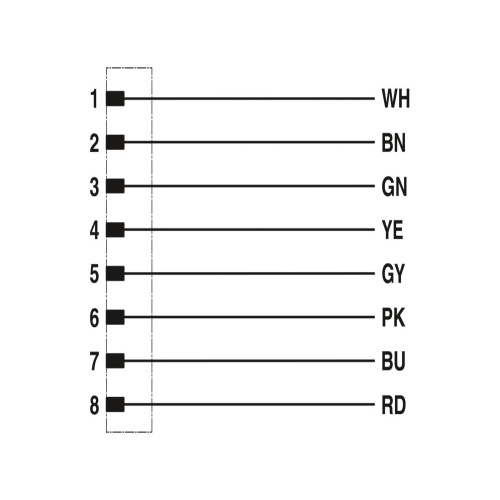

Phoenix Contact 1554636 This device connector features an M12-Standard front mounting design with 8-position pin layout and straight pins, suitable for universal use. The cable end is coded as A to indicate it's connected to the free end of a cable. Mounting is via Pg9 and individual wires are used, with the cable having a length of 0.5m and a cross-sectional area of 0.25mm². The wire is made of TPE litz material, potted for added protection, and is part of a lead-free alternative as per RoHS II regulations.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
8
Sub Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
