Code: 173180

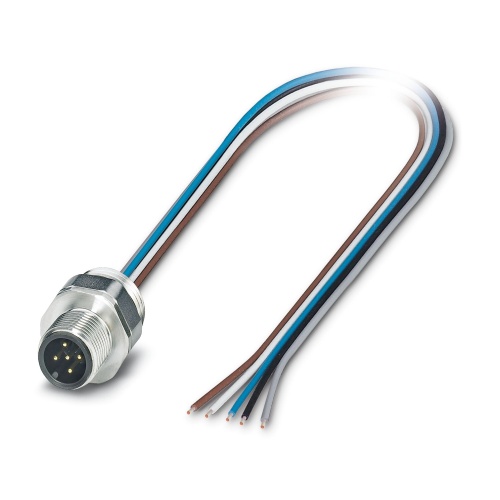

Phoenix Contact 1554623 Device connector front mounting SACC-EC-M12MS-5CON-PG 9/0,5 VA
Normally In Stock
Phoenix Contact 1554623 - 5 Positions - CuZn - IP65, IP67, IP69, IP69K - Individual Wire Connection - M27
Condition: New
Usually ships Same Day or Next Day$47.56
Sale Price
$39.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1554623 The device connector features a front mounting design and is designed to be universal, accommodating 5-position pins in a straight configuration that meets the M12-Standard specification. It has coding A on one end of the free cable, allowing for individual wire management, with a specified cable length of 0.5m, consisting of TPE litz wires with a cross-sectional area of 0.34mm2, and is potted to protect the internal components.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
