Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

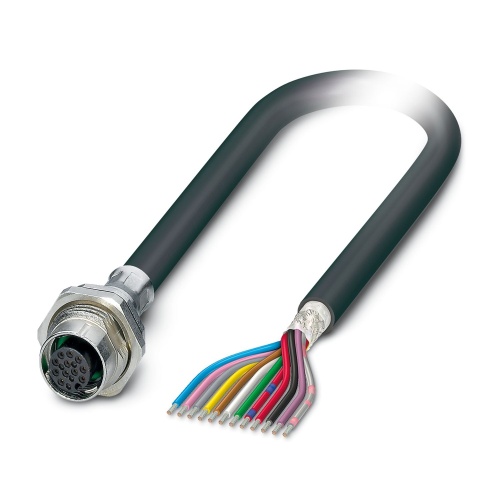

Phoenix Contact 1442188 Device connector rear mounting SACCBP-FS-12CON-M16/1,0-PVCSCO
Normally In Stock
Code: 173155
Phoenix Contact 1442188 - 12 Positions - CuZn - IP67 - Cable Connection - Standard, SPEEDCON Locking
Condition: New
Usually ships Same Day or Next Day$85.55
Sale Price
$71.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1442188 This device connector features a rear mounting design with a universal fit, accommodating 12 positions and shielded for reduced electromagnetic interference. The M12-SPEEDCON socket is coded as A and located at the free end of the cable, attaching to an M16 x 1.5 mount point. The connection includes a 1m cable with a 0.14mm2 cross-sectional area, wrapped in a lead-free PVC black material in accordance with RoHS II regulations, which are being phased out in favour of an alternative with a maximum lead content of less than 0.1%.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
12
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
For high transmission safety: shield connection to the housing with optional EMC nut
Code: 173155
Phoenix Contact 1442188 Device connector rear mounting SACCBP-FS-12CON-M16/1,0-PVCSCO
$85.55
Sale Price
$71.29
