Code: 173122
Phoenix Contact 1554610 Device connector front mounting SACC-EC-M12MS-4CON-PG 9/0,5 VA
Normally In Stock
Phoenix Contact 1554610 - 4 Positions - CuZn - IP65, IP67, IP69, IP69K - Individual Wire Connection
Condition: New
Usually ships Same Day or Next Day$45.17
Sale Price
$37.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

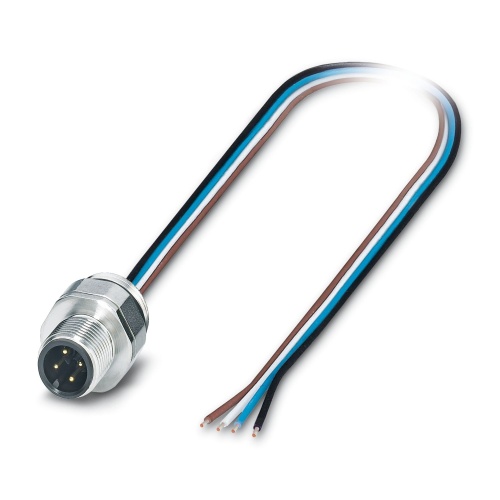

Phoenix Contact 1554610 A device connector is mounted at the front with a universal design featuring four positions for pins in a straight configuration that conforms to the M12-Standard and uses coding system A on the free end of the cable. The connector has individual wires with a specified cable length of 0.5 meters, made from 0.34 mm2 TPE litz wire which is potted.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
Code: 173122
Phoenix Contact 1554610 Device connector front mounting SACC-EC-M12MS-4CON-PG 9/0,5 VA
$45.17
Sale Price
$37.64
