Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 172388

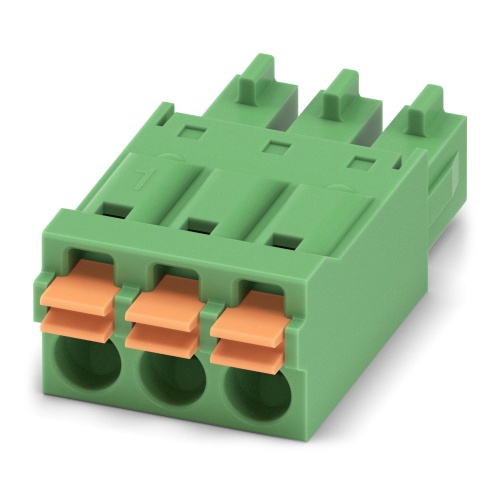

Phoenix Contact 1745904 PCB connector FMC 1,5/ 3-ST-3,81
Normally In Stock
Phoenix Contact 1745904 FMC 1,5/ 3-ST-3,81 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $4.48
Sale Price
$3.73
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1745904 A PCB connector with a nominal cross-sectional area of 1.5 mm² features a green color and is designed to handle an 8 A current flow within its rated voltage (III/2) of 160 V, utilizing a Sn contact surface and socket connection type. The product falls under the FMC 1,5/..-ST category with a pitch of 3.81 mm, allowing for push-in spring connections, where the conductor meets the PCB in a 0° direction, utilizing the COMBICON FMC 1,5 - MCDN 1,5 plug-in system and does not require locking or mounting methods as it is packaged in cardboard.
Specifications
Connector Amperage
8 Amp
Connector Material
PBT
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Component
PCB Connector
Number of Connections
3
Number of Positions
3
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Code: 172388
Phoenix Contact 1745904 PCB connector FMC 1,5/ 3-ST-3,81
$4.48
Sale Price
$3.73
MUST BUY IN PACKS OF 50
