Code: 172298

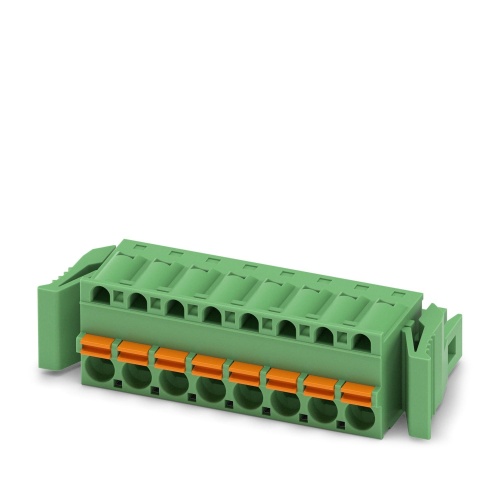

Phoenix Contact 1947117 PCB connector FKC 2,5/ 8-ST-RF
Normally In Stock
Phoenix Contact 1947117 FKC 2,5/ 8-ST-RF ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $11.70
Sale Price
$9.75
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1947117 This PCB connector has a nominal cross-sectional area of 2.5 mm² and is coloured green, featuring an 8-pin, push-in spring connection system with a pitch of 5 mm, supporting up to 12 A of current at a rated voltage of 320 V, and is part of the FKC 2,5/..-ST-RF product range, packaged in cardboard with a self-locking flange.
Specifications
Connector Amperage
12 Amp
Connector Material
PBT
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Component
PCB Connector
Number of Connections
8
Number of Positions
8
Features
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
Can be combined with the MSTB 2,5 range
Intuitive locking mechanism prevents accidental disconnection
