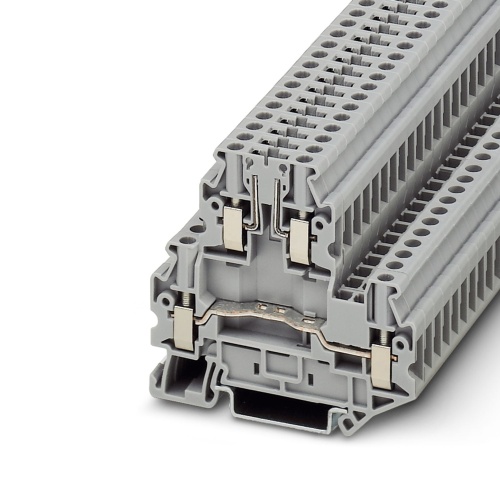

Phoenix Contact 3044801 Disconnect terminal block UTTB 4-TG P/P
Normally In Stock
Code: 1720
UTTB 4-TG P/P Phoenix Contact 3044801 UTTB 4-TG P/P Gray Double Level Feed Through 6.2mm Removable Disconnect Terminal Block.
Condition: New
Usually Ships Same day or Next Day$6.98
Sale Price
$5.82
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044801 To determine current and voltage, the type of plug used is crucial, as indicated by the terminal block disconnection. Test sockets with screws allow for easy insertion of test plugs, allowing users to measure up to 500V nominal voltage and 30A nominal current through a screw connection method. The rated cross-sectional area is 4mm², while actual cross-sections range from 0.14mm² to 6mm². Additionally, the disconnect zone features mounting options NS 35/7.5 and NS 35/15, with gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
