Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 171980

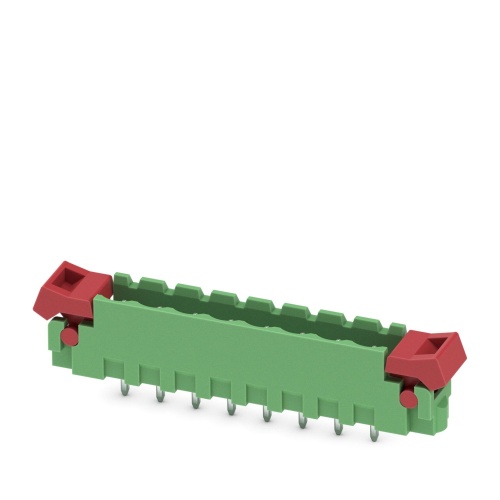

Phoenix Contact 1808528 PCB header MSTBV 2,5/ 8-GEH-5,08
Normally In Stock
Phoenix Contact 1808528 MSTBV 2,5/ 8-GEH-5,08 Green ,IIIa,PBT Feed-through header
Condition: New
Usually ships Same Day or Next Day $5.20
Sale Price
$4.33
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1808528 The specified PCB header has a nominal cross-sectional area of 2.5 mm² and is colored green. It can handle a maximum current of 12 A when the rated voltage (III/2) is applied, which is 320 V. The contact surface material is tin, with eight pins arranged linearly along one row, allowing for wave soldering mounting and a standard pin layout. The header features 8 solder pins per potential, each connected to a unique pin connection, making it suitable for the COMBICON MSTB 2,5 plug-in system.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
PBT
Connector Material
Iiia
Component
PCB Header
Manufacturer
Phoenix Contact
Number of Positions
8
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Vertical connection enables multi-row arrangement on the PCB
