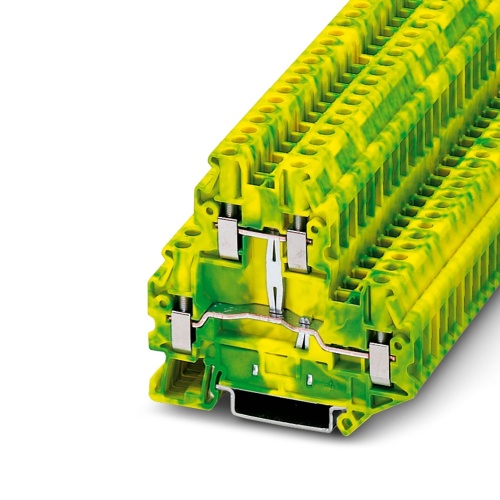

Phoenix Contact 3044759 Protective conductor terminal block UTTB 4-PE
Normally In Stock
Code: 1715
UTTB 4-PE Phoenix Contact 3044759 Phoenix Contact UTTB 4-PE. Double Level Feed Through Component Ground Block with Ground Block 6.2mm.Green-Yellow, 10-26AWG bridgeable on both Levels
Condition: New
Usually Ships Same day or Next Day$9.62
Sale Price
$8.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044759 The protective conductor terminal block has four connections and uses a screw connection method with a range of cross-sectional areas from 0.14mm² to 6mm², available in two mounting types (NS 35/7.5 and NS 35/15) and comes in a green-yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Tested for railway applications
For a clear overview, each terminal point supports large-surface labeling
As an option, the levels can be connected using the FBS‑PV UT vertical bridge
Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks
Downloads
Phoenix 3044759 CAD data International.dxfPhoenix 3044759 CAD data International.pdfPhoenix 3044759 CAD data International.stpPhoenix 3044759 CAD Drawing.zipPhoenix 3044759 Certification English.pdfPhoenix 3044759 Certification International.pdfPhoenix 3044759 Manufacturers declaration English.pdfPhoenix 3044759 Manufacturers declaration International-2.pdfPhoenix 3044759 Manufacturers declaration International.pdfPhoenix 3044759 Safety note English.pdfPhoenix 3044759 Spec Sheet.pdfPhoenix 3044759 Tender Text English.zipPhoenix 3044759 User instructions for the Ex Area International.pdfPhoenix 3044759 User Manual.pdf
