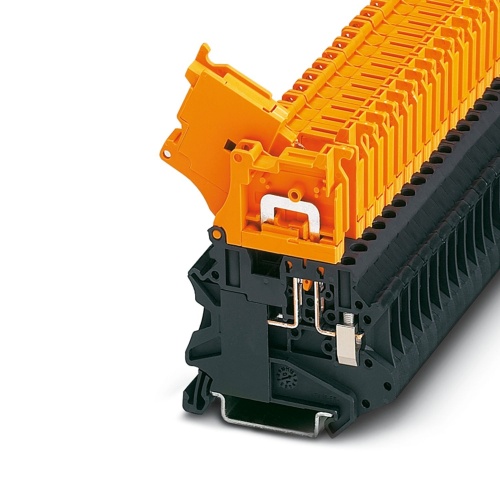

Phoenix Contact 3046252 Lever-type disconnect terminal block UT 4-HEDI-P/P
Normally In Stock
Code: 1710
UT 4-HEDI-P/P Phoenix Contact 3046252 Phoenix Contact UT 4-HEDI-P/P Black-Orange Lever Type Disconnect Terminal Block (With Test Socket Screws) 6.2mm Single through screw with disconnect lever, up to 500V, 20A, 10-26AWG
Condition: New
Usually Ships Same day or Next Day$6.53
Sale Price
$5.44
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046252 A lever-type disconnect terminal block is available with test socket screws for easy insertion of test plugs, suitable for 500V nominal voltage and 20A nominal current. The connection method is screw-based, allowing for a range of rated cross-sections from 0.14mm² to 6mm². This terminal block is mounted using two types of NS35/7.5 and NS35/15 mounting options, and features a black/orange color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black/Orange
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Lever-Type Disconnect Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046252 CAD data International.dxfPhoenix 3046252 CAD data International.pdfPhoenix 3046252 CAD data International.stpPhoenix 3046252 CAD Drawing.zipPhoenix 3046252 Manufacturers declaration English.pdfPhoenix 3046252 Manufacturers declaration International-2.pdfPhoenix 3046252 Manufacturers declaration International.pdfPhoenix 3046252 Safety note English.pdfPhoenix 3046252 Spec Sheet.pdfPhoenix 3046252 Tender Text English.zip
