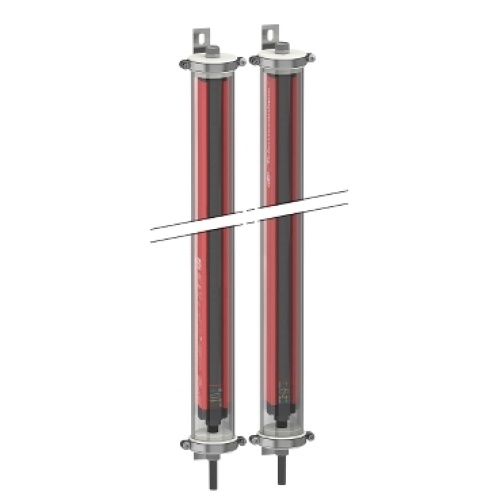

Schneider XUSL4E30H046LWC Transmitter-receiver system 3 - 17 m,0 - 8 m Type 4 SIL 3 For hand protection Safety light curtain type 4
Normally In Stock
Code: 170627
Schneider XUSL4E30H046LWC Transmitter-receiver system 3 - 17 m,0 - 8 m Type 4 SIL 3 For hand protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver Safety light curtain type 4
Condition: New
Ships in 6 weeks. CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $490 OF TELEMECANIQUE SENSORS FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$4115.44
Sale Price
$3429.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider XUSL4E30H046LWC Transmitter-receiver system 3 - 17 m,0 - 8 m Type 4 SIL 3 For hand protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver DC,Automatic,Manual IP69K PMMA (polymethyl methacrylate): tube,Stainless steel AISI 316L: sealing plug,PVC (polyvinyl chloride): cable Test,Muting through external safety module XPSLCMUT1160,LED display of operating modes and faults,Anti-condensation system Safety light curtain type 4
Specifications
Manufacturer
Telemecanique
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Connection Type
Male Connector
(Instrument-Sensor) Output Signal Type
DC
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) Temperature Range
-10 - 55 °C
(Instrument-Sensor) Type
Transmitter-Receiver System
(Instrument-Sensor) Type of Operator
DC
(Instrument-Sensor) Type of Operator
Automatic
(Instrument-Sensor) Type of Operator
Manual
(Instrument-Sensor) Standards
Type 4 SIL 3
(Instrument-Sensor) Temperature Range
-20 - 55 °C
(Instrument-Sensor) Connection Type
5 Pins Transmitter
(Instrument-Sensor) Connection Type
8 Pins Receiver
(Instrument-Sensor) Indication
1 Multi-Colour LED Transmitter
(Instrument-Sensor) Indication
2 Dual Colour Leds Receiver
(Instrument-Sensor) For Use With
Test
(Instrument-Sensor) For Use With
Muting Through External Safety Module XPSLCMUT1160
(Instrument-Sensor) For Use With
LED Display Of Operating Modes And Faults
(Instrument-Sensor) Output Signal Type
Safety Outputs OSSD
(Instrument-Sensor) Output Signal Type
Solid-State
(Instrument-Sensor) Output Signal Type
PNP
(Instrument-Sensor) Size
460 mm
(Instrument-Sensor) Measurement Response Time
7.5 Ms
(Instrument-Sensor) Application
For Hand Protection
(Instrument-Sensor) For Use With
Anti-Condensation System
(Instrument-Sensor) Span
3 - 17 M
(Instrument-Sensor) Span
0 - 8 M
Component
Light Curtain
Features
2 PNP outputs
Operating temperature range: -20 °C…+55 °C, Resistance to acidic and alkaline cleaning agents, and aliphatic hydrocarbons
