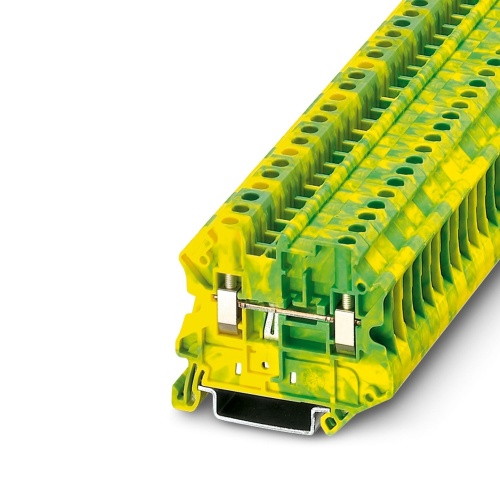

Phoenix Contact 3046223 Protective conductor terminal block UT 4-MTD-PE
Normally In Stock
Code: 1704
UT 4-MTD-PE Phoenix Contact 3046223 Phoenix Contact UT 4-MTD-PE. Ground Block 6.2mm Green-Yellow (MT Shape with snap on foot) Single through screw connection, 10-26AWG
Condition: New
Usually Ships Same day or Next Day$4.82
Sale Price
$4.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046223 A protective conductor terminal block features a screw connection and accepts conductors with cross sections ranging from 0.14 mm² to 6 mm². It is mounted using the standard NS 35/7.5 or NS 35/15 mounting system and has a green-yellow color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
PE terminal block enables terminal strips of the same shape to be configured with disconnect and knife disconnect terminal blocks
The consistent labeling and bridging of terminal blocks is an advantage
Downloads
Phoenix 3046223 CAD data International.dxfPhoenix 3046223 CAD data International.pdfPhoenix 3046223 CAD data International.stpPhoenix 3046223 CAD Drawing.zipPhoenix 3046223 Certification English-2.pdfPhoenix 3046223 Certification English.pdfPhoenix 3046223 Manufacturers declaration English.pdfPhoenix 3046223 Manufacturers declaration International-2.pdfPhoenix 3046223 Manufacturers declaration International.pdfPhoenix 3046223 Safety note English.pdfPhoenix 3046223 Spec Sheet.pdfPhoenix 3046223 Tender Text English.zipPhoenix 3046223 User instructions for the Ex Area International.pdfPhoenix 3046223 User Manual.pdf
