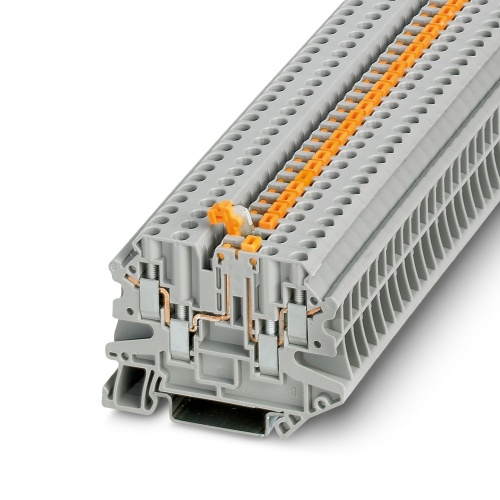

Phoenix Contact 3064056 Knife-disconnect terminal block UT 4-QUATTRO-MT P/P
Normally In Stock
Code: 1689
UT 4-QUATTRO-MT P/P Phoenix Contact 3064056 Phoenix Contact UT 4-QUATTRO-MT P/P. Terminal Block 6.2mm (4 Conductor) Gray Knife Disconnect (With test socket screws) Feed through screw connection, up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$6.29
Sale Price
$5.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

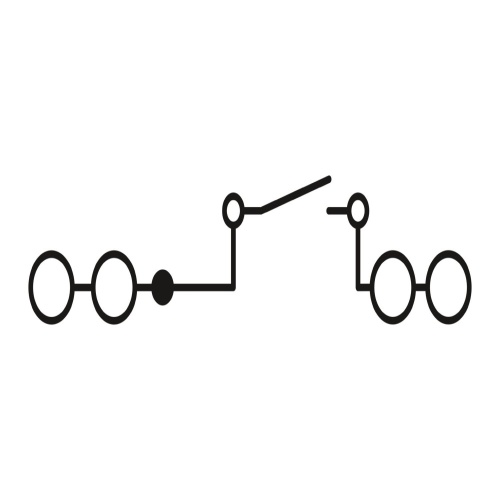

Phoenix Contact 3064056 The knife-disconnect terminal block features test socket screws for inserting test plugs and is designed for use with a nominal voltage of 500 V and an nominal current capacity of 20 A. It has four connection points that are secured via screw connections, with rated cross sections ranging from 0.14 mm2 to 6 mm2. The mounting type is NS 35/7,5 or NS 35/15, and the terminal block is colored gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Tested for railway applications
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 3064056 CAD data International.dxfPhoenix 3064056 CAD data International.pdfPhoenix 3064056 CAD data International.stpPhoenix 3064056 CAD Drawing.zipPhoenix 3064056 Manufacturers declaration English.pdfPhoenix 3064056 Manufacturers declaration International-2.pdfPhoenix 3064056 Manufacturers declaration International.pdfPhoenix 3064056 Safety note English.pdfPhoenix 3064056 Spec Sheet.pdfPhoenix 3064056 Tender Text English.zip
