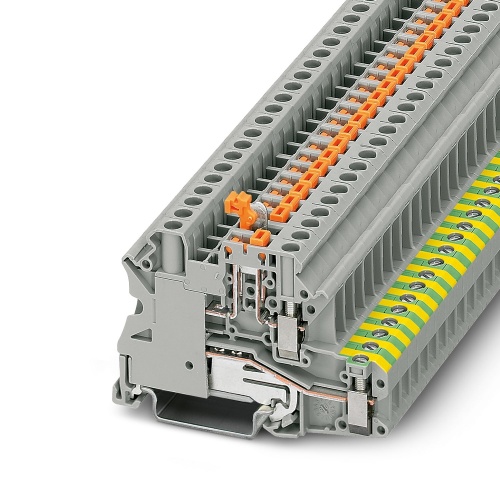

Phoenix Contact 3046140 Feed-through terminal block UT 4-PE/MT P/P
Normally In Stock
Code: 1682
UT 4-PE/MT P/P Phoenix Contact 3046140 Phoenix Contact UT 4-PE/MT P/P. Terminal Block with Ground Block (With Test Socket Screws) 6.2mm Gray Knife Disconnect Feed through screw connection, up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$9.54
Sale Price
$7.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046140 A feed-through terminal block features a test socket with screws for inserting test plugs, designed to handle nominal voltages of 500 V and currents of up to 20 A. The connection method is screw-based, while the rated cross-sectional area ranges from 2.5 mm² to 6 mm². Mounting options include NS 35/7.5 and NS 35/15, with a standardized color scheme of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Ground Terminal Block
Sub Component
Feed-Through Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3046140 CAD data International.dxfPhoenix 3046140 CAD data International.pdfPhoenix 3046140 CAD data International.stpPhoenix 3046140 CAD Drawing.zipPhoenix 3046140 Manufacturers declaration English.pdfPhoenix 3046140 Manufacturers declaration International.pdfPhoenix 3046140 Safety note English.pdfPhoenix 3046140 Spec Sheet.pdfPhoenix 3046140 Tender Text English.zip
