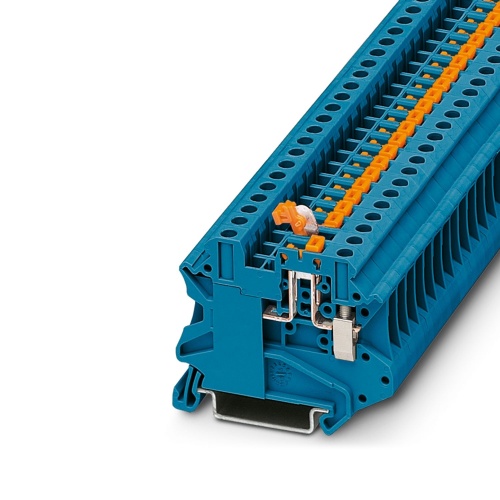

Phoenix Contact 3046265 Knife-disconnect terminal block UT 4-MT-P/P BU
Normally In Stock
Code: 1680
UT 4-MT-P/P BU Phoenix Contact 3046265 Phoenix Contact UT 4-MT-P/P BU. Terminal Block (With test socket screws) 6.2mm Blue Knife Disconnect Feed through screw connection, up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$4.99
Sale Price
$4.16
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046265 The terminal block features a knife-disconnect mechanism, allowing for easy test plug insertion through test socket screws. It operates within a 500V nominal voltage range and can handle continuous currents of up to 20A. Connection is achieved via screw methods, with rated cross-sections ranging from 0.14mm² to 6mm². The terminal block is mounted using the NS 35/7.5 or NS 35/15 standard and is distinguished by its blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Compact design and high current carrying capacity of 20 A
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 3046265 CAD data International.dxfPhoenix 3046265 CAD data International.pdfPhoenix 3046265 CAD data International.stpPhoenix 3046265 CAD Drawing.zipPhoenix 3046265 Manufacturers declaration English.pdfPhoenix 3046265 Manufacturers declaration International-2.pdfPhoenix 3046265 Manufacturers declaration International.pdfPhoenix 3046265 Safety note English.pdfPhoenix 3046265 Spec Sheet.pdfPhoenix 3046265 Tender Text English.zip
