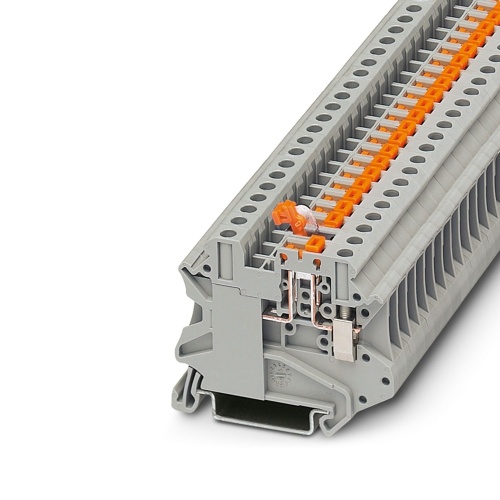

Phoenix Contact 3046171 Knife-disconnect terminal block UT 4-MT-P/P
Normally In Stock
Code: 1679
UT 4-MT-P/P Phoenix Contact 3046171 Phoenix Contact UT 4-MT-P/P. Terminal Block (With Test Socket Screws) 6.2mm Gray Knife Disconnect Feed through screw connection, up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$3.72
Sale Price
$3.10
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046171 The knife-disconnect terminal block features a test socket for inserting test plugs and is designed to handle a maximum voltage of 500 V. It can withstand continuous currents of up to 20 A at room temperature. The connection method involves screw attachment, with available cross-sectional areas ranging from 0.14 mm2 to 6 mm2. This terminal block can be mounted on the NS 35/7,5 and NS 35/15 brackets in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Tested for railway applications
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 3046171 CAD data International.dxfPhoenix 3046171 CAD data International.pdfPhoenix 3046171 CAD data International.stpPhoenix 3046171 CAD Drawing.zipPhoenix 3046171 Manufacturers declaration English.pdfPhoenix 3046171 Manufacturers declaration International-2.pdfPhoenix 3046171 Manufacturers declaration International.pdfPhoenix 3046171 Product Information English.pdfPhoenix 3046171 Safety note English.pdfPhoenix 3046171 Spec Sheet.pdfPhoenix 3046171 Tender Text English.zip
