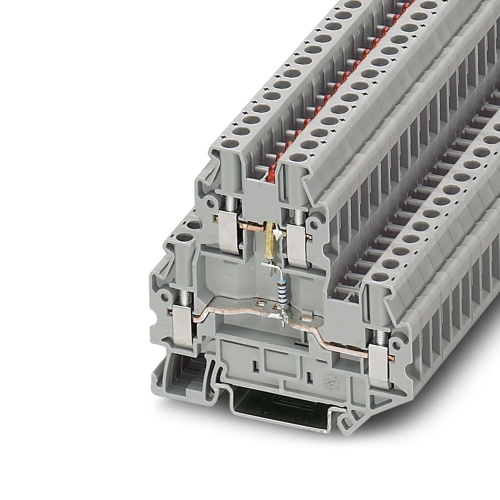

Phoenix Contact 3046692 Component terminal block UTTB 2,5-LA 24 RD
Normally In Stock
Code: 1659
UTTB 2,5-LA 24 RD Phoenix Contact 3046692 Phoenix Contact UTTB 2.5-LA 24 RD. Double Level Feed Through Component Terminal Block 5.2mm with Light Indicator Gray, 12-30V, 28A, 12-26AWG bridgeable on both Levels (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$9.16
Sale Price
$7.63
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

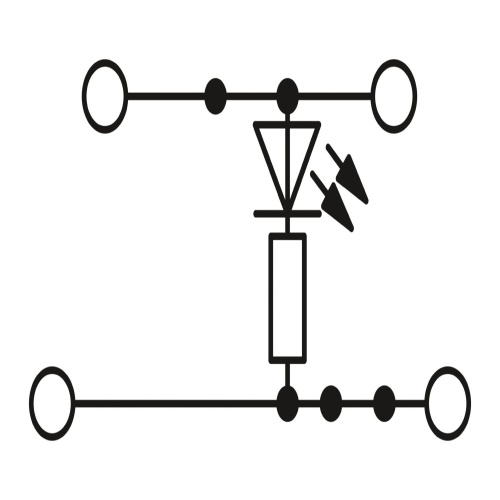

Phoenix Contact 3046692 The component terminal block is characterized by a voltage determined by the selected LED version, with a connection method that utilizes screw connections, and has a rated cross-sectional area of 2.5 mm², ranging from 0.14 mm² to 4 mm², while it can be mounted using two types of mounting configurations (NS 35/7,5 and NS 35/15), and features a gray color.
Specifications
Terminal Block Indication
12V LED Indicator
Terminal Block Indication
24V LED Indicator
Terminal Block Voltage Rating
24 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Diode
With Diode
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Design width of just 5.2 mm
Downloads
Phoenix 3046692 CAD data International.dxfPhoenix 3046692 CAD data International.pdfPhoenix 3046692 CAD data International.stpPhoenix 3046692 CAD Drawing.zipPhoenix 3046692 Manufacturers declaration English.pdfPhoenix 3046692 Safety note English.pdfPhoenix 3046692 Spec Sheet.pdfPhoenix 3046692 Tender Text English.zip
