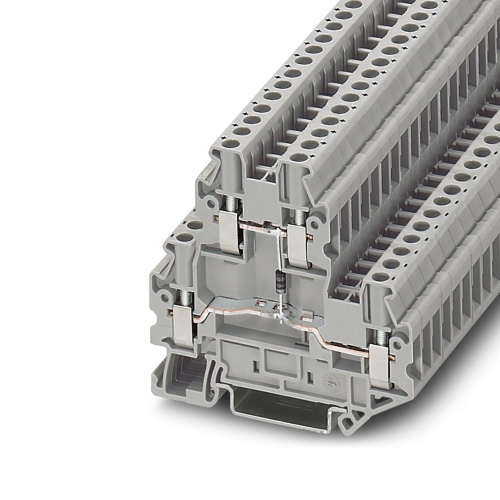

Phoenix Contact 3046650 Component terminal block UTTB 2,5-DIO/O-U
Normally In Stock
Code: 1654

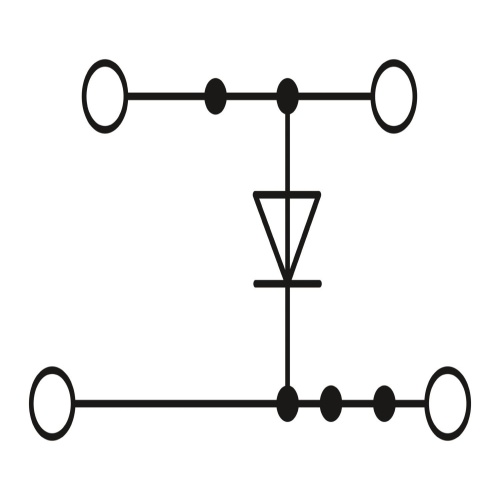

UTTB 2,5-DIO/O-U Phoenix Contact 3046650 Phoenix Contact UTTB 2.5-DIO/O-U. Double Level Feed Through Component Terminal Block 5.2mm with Integrated Diode conducting from top to bottom Gray, up to 500V, 28A, 12-26AWG bridgeable on both Levels (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.41
Sale Price
$5.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046650 The component terminal block's maximum current rating is dependent on the diode used, in this case a 1N 4007 diode with a reverse voltage of 1300V and a maximum continuous current of 0.5A, offering an integrated nominal current of 0.5A via screw connections at two levels, featuring cross sections ranging from 0.14 mm2 to 4 mm2 and available in mounting types NS 35/7,5 and NS 35/15 with a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Diode
With Diode
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Design width of just 5.2 mm
Downloads
Phoenix 3046650 CAD data International.dxfPhoenix 3046650 CAD data International.pdfPhoenix 3046650 CAD data International.stpPhoenix 3046650 CAD Drawing.zipPhoenix 3046650 Manufacturers declaration English.pdfPhoenix 3046650 Manufacturers declaration International.pdfPhoenix 3046650 Safety note English.pdfPhoenix 3046650 Spec Sheet.pdfPhoenix 3046650 Tender Text English.zip
