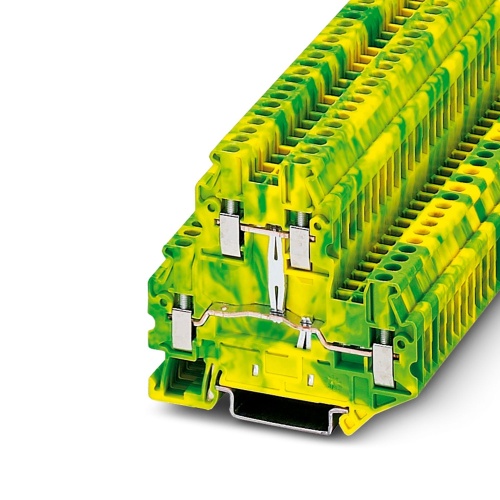

Phoenix Contact 3044665 Protective conductor double-level terminal block UTTB 2,5-PE
Normally In Stock
Code: 1653
UTTB 2,5-PE Phoenix Contact 3044665 Phoenix Contact UTTB 2.5-PE. Double Level Ground Block 5.2mm Green-Yellow, 2 Levels 4 connections, 12-26 AWG (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$7.93
Sale Price
$6.61
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044665 A protective conductor double-level terminal block features four connections made via screw connections, with available cross-sectional areas ranging from 0.14 mm2 to 4 mm2, and is mounted using the NS 35/7,5 or NS 35/15 type, identified by its green-yellow color code.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Features
Tested for railway applications
For a clear overview, each terminal point supports large-surface labeling
As an option, the levels can be connected using the FBS‑PV UT vertical bridge
Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks
Downloads
Phoenix 3044665 CAD data International.dxfPhoenix 3044665 CAD data International.pdfPhoenix 3044665 CAD data International.stpPhoenix 3044665 CAD Drawing.zipPhoenix 3044665 Certification English.pdfPhoenix 3044665 Certification International.pdfPhoenix 3044665 Manufacturers declaration English.pdfPhoenix 3044665 Manufacturers declaration International-2.pdfPhoenix 3044665 Manufacturers declaration International.pdfPhoenix 3044665 Safety note English.pdfPhoenix 3044665 Spec Sheet.pdfPhoenix 3044665 Tender Text English.zipPhoenix 3044665 User instructions for the Ex Area International.pdfPhoenix 3044665 User Manual.pdf
