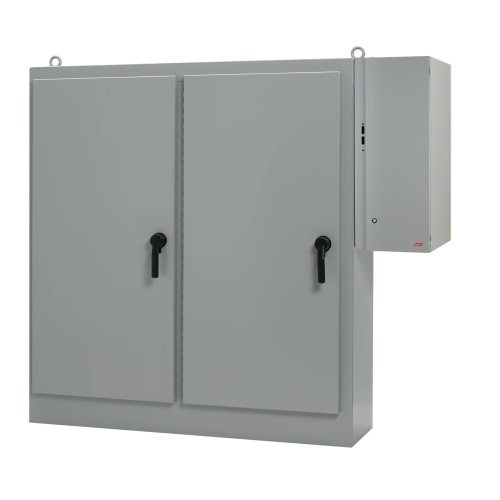

nVent Hoffman A84XD4EW24FTCLPG SEQUESTER Disconnect Enclosure Package
Normally In Stock
Code: 16061
nVent Hoffman A84XD4EW24FTCLPG Disconnect Enclosure with SEQUESTR External Disconnect Package (Preferred Cutout). 84" x 158" x 24" (HxWxD). (Gray Interior) Four Door Steel Type 12 with 3-Point latch with handle and standard concealed hinges. Interlocks doors of main control cabinet when disconnect switch is powered ON, Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first, Provision for pass-through power into the main enclosure, Preferred disconnect cutout, Quarter-turn, screwdriver slot latch on SEQUESTR Enclosure. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$18400.60
Sale Price
$15333.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A84XD4EW24FTCLPG SEQUESTER Disconnect Enclosure Package Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the SEQUESTR ,Enclosure. Power is passed-through to the main enclosure.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Interior Color
Gray
Enclosure Depth
24"
Enclosure Height
84"
Enclosure Width
158"
Line
Sequestr
Component
Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Enclosure NEMA Rating
NEMA Type 12
Enclosure Number of Doors
Standard Product: 4 Door Enclosures
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Quarter-turn, screwdriver slot latch on Sequestr Enclosure
Provision for pass-through power into the main enclosure
Preferred disconnect cutout
Rugged PowerGlide Handle with three-point latch on main control enclosure
Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first
Interlocks doors of main control cabinet when disconnect switch is powered ON
Concealed, easy-to-remove hinges
Optional back panel for main control cabinet for maximum ordering flexibility
Conductive back panel included in Sequestr External Disconnect Enclosure
Bonding provision on door
Grounding studs on body
Removable centerposts for easy back panel installation
Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
A28X base enclosure
External disconnect enclosure is 16 gauge (.060-inch), main control cabinet is 11 gauge (.121-inch)
Continuously welded and ground seams all around
Body flange trough excludes liquids and contaminants
Heavy duty lifting eyes anchored into reinforced top
A70D external disconnect enclosure
No disconnect cutout on main control cabinet
