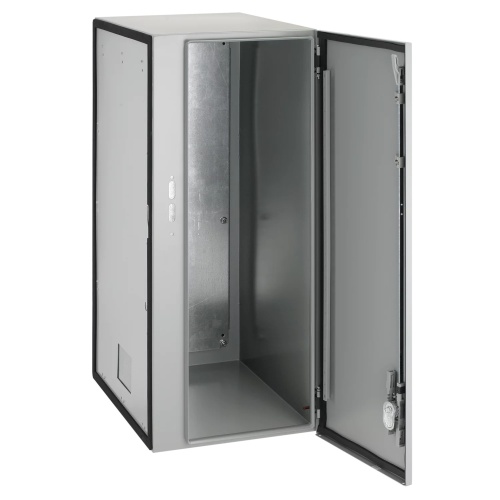

nVent Hoffman AXD20 SEQUESTER Steel External Disconnect Enclosure
Normally In Stock
Code: 16007
nVent Hoffman AXD20 SEQUESTR External Disconnect Enclousre. 34.35" x 14" x 20" (HxWxD) with Conductive Backplane. (Gray Interior) One Door Steel Type 12 with quarter-turn latch with handle and standard concealed hinges. Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the SEQUESTR Enclosure. Power is passed-through to the main enclosure (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1901.38
Sale Price
$1584.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

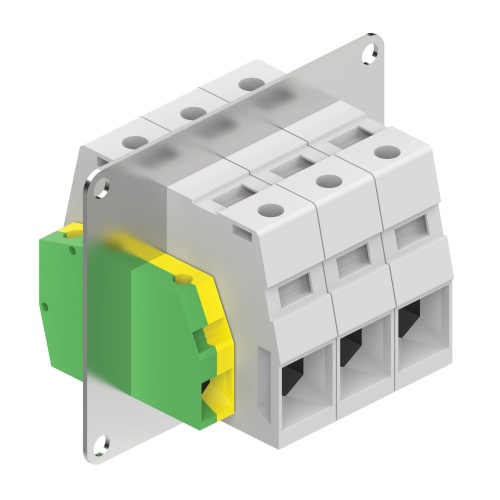

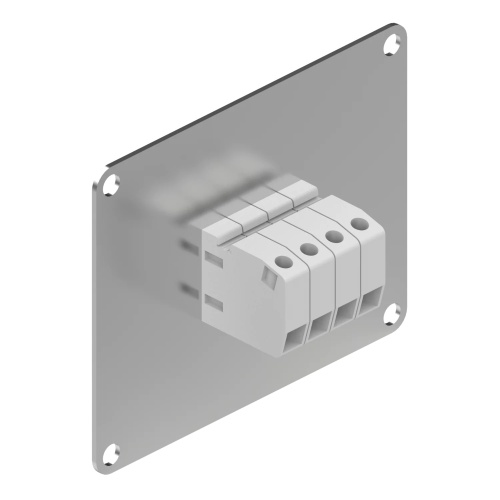

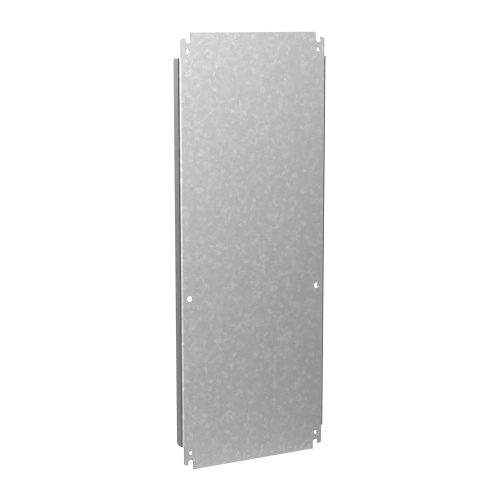

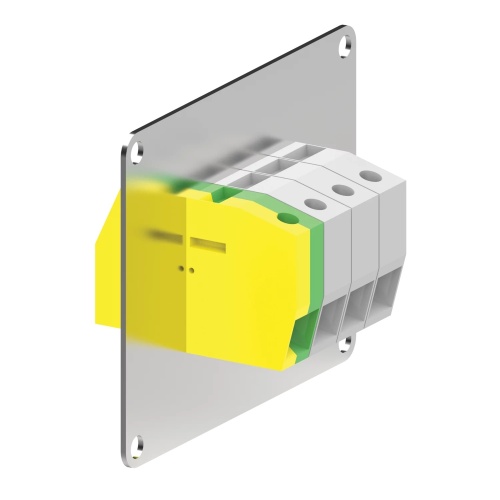

Related Products
Description
nVent Hoffman AXD20 SEQUESTER Steel External Disconnect Enclosure Use CONCEPT Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers. Furnished with Enclosures: Door interlock bracket welded to door, Three-point door latching system installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
20"
Enclosure Height
34.45"
Line
Sequestr
Component
Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
14"
Enclosure Composition
Steel
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Quarter-turn screwdriver slot latch
Provision for pass-through power into the main cabinet - blank plate for customer modification
Preferred disconnect cutout
Hidden hinges
Maintains UL Type 12 rating
Interlocks with doors of main control cabinet when the disconnect switch is powered ON
Bonding provision on door
Hinged on right side
Continuously welded and ground seams all around
Installation hardware and templates included
Conductive back panel included
Downloads
Hoffman AXD20 2D DXF CAD.zipHoffman AXD20 3D STEP CAD.zipHoffman AXD20 CAD Drawing.zipHoffman AXD20 Cutout Template.pdfHoffman AXD20 Declaration of Compliance.pdfHoffman AXD20 Dimension Drawing.gifHoffman AXD20 Dimension Drawing.pdfHoffman AXD20 EU Certification.pdfHoffman AXD20 Instruction Manual.pdfHoffman AXD20 Sequestr Instructions.pdfHoffman AXD20 Spec Sheet.pdfHoffman AXD20 UL Certification.pdf
