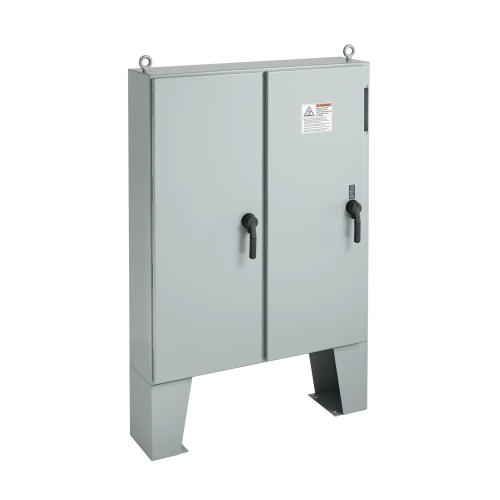

nVent Hoffman A72CPX7218LPFTC Stainless Steel Disconnect Enclosure
Normally In Stock
Code: 16005
nVent Hoffman A72CPX7218LPFTC Disconnect Enclosure Universal-Cutout. 72" x 72.50" x 18" (HxWxD). (White Interior) Two Door Steel Type 12 with 3-Point latch with handle and standard concealed hinges. Concealed, easy-to-remove hinges, Heavy-duty 3 point latching mechanism operated by padlocking handle on all doors. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$8804.86
Sale Price
$7337.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A72CPX7218LPFTC Stainless Steel Disconnect Enclosure Use CONCEPT Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers. Furnished with Enclosures: Door interlock bracket welded to door, Three-point door latching system installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
18"
Enclosure Composition
Stainless Steel
Enclosure Number of Doors
2 Door
Enclosure Latch Type
3 Point
Enclosure Height
72"
Enclosure Width
72.5"
Enclosure Mount Type
Floor Mount
Component
Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Universal Cutout
Manufacturer
Hoffman
Features
Concealed, easy-to-remove hinges
Body flange trough excludes liquids and contaminants
Removable centerposts permit easy panel installation
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Body stiffeners in larger enclosures for extra rigidity
Seams continuously welded and ground smooth
Heavy-duty lifting eyes anchor into reinforced top
Oil-resistant door gasket
Provisions for mounting lights
15-inch floor stands are bolted-on to enclosure
Data pocket is high impact thermoplastic
Panel supports
Collar studs provided for mounting optional panels
Mechanical interlock operated by master door prevents slave door from being opened first, doors can be closed in any order
Includes door hardware
Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
Downloads
Hoffman A72CPX7218LPFTC 2D DXF CAD.zipHoffman A72CPX7218LPFTC 3D STEP CAD.zipHoffman A72CPX7218LPFTC CAD Drawing.zipHoffman A72CPX7218LPFTC Centerpost Installation Instructions.pdfHoffman A72CPX7218LPFTC CSA Certification.pdfHoffman A72CPX7218LPFTC Declaration of Compliance.pdfHoffman A72CPX7218LPFTC Dimension Drawing.gifHoffman A72CPX7218LPFTC EU Certification.pdfHoffman A72CPX7218LPFTC Large Enclosure Handling Manual.pdfHoffman A72CPX7218LPFTC Repainting Instructions.pdfHoffman A72CPX7218LPFTC Spec Sheet.pdfHoffman A72CPX7218LPFTC UL Certification.pdf
