Code: 15946

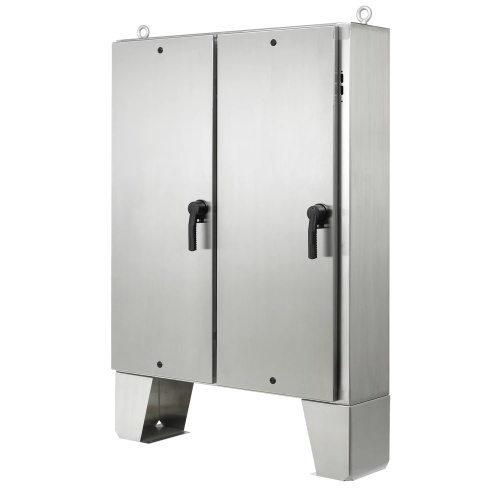

nVent Hoffman A60HX6112SSLPQT Stainless Steel Disconnect Enclosure
nVent Hoffman A60HX6112SSLPQT Stainless Steel Disconnect Enclosure Preferred-Cutout. 60" x 61" x 12" (HxWxD). Two Door 304 Stainless Steel Type 4x with 3-Point latch with handle and standard concealed hinges. Heavy-duty three-point latching mechanism on each door, operated by nVent Hoffman’s black die-cast POWERGLIDE padlocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$20219.76
Sale Price
$16849.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A60HX6112SSLPQT Stainless Steel Disconnect Enclosure This disconnect enclosure is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Designed to house the most popular disconnect switches and circuit breakers.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Depth
12"
Enclosure Lock Type
Padlocking
Freestanding Enclosure Base Type
Floor Mount
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
60"
Enclosure Width
61"
Enclosure Mount Type
Floor Mount
Component
Disconnect Enclosure
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Black die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle
Master door is far right-hand door on all enclosures
Seams continuously welded and ground smooth
3 Point latching mechanism for simple, reliable one-motion closure
Master door handle provided with integral screwdriver defeater
Heavy-duty Type 316L stainless steel lifting eyes
Bolt-on, 15-inch high stainless steel floor stands
Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
Mechanical interlock activated by master door prevents slave door from being opened first, doors can be closed in any order
Preferred cutout on right-hand flange provides mounting for most disconnect operator
Collar studs on inside of enclosure back for optional mounting panels
Removable centerpost for easy panel installation
No interior stiffeners to obstruct component mounting
Provisions for mounting optional fluorescent light package
Flange trough collar on all four sides of door openings
Data pocket is high-impact plastic attached with pressure-sensitive adhesive
Bonding provisions on doors and ground studs on body
Downloads
Hoffman A60HX6112SSLPQT 2D DXF CAD.zipHoffman A60HX6112SSLPQT 3D STEP CAD.zipHoffman A60HX6112SSLPQT CAD Drawing.zipHoffman A60HX6112SSLPQT Declaration of Compliance.pdfHoffman A60HX6112SSLPQT Dimension Drawing.gifHoffman A60HX6112SSLPQT Enclosure Alteration Instructions.pdfHoffman A60HX6112SSLPQT Enclosure Alterations Manual.pdfHoffman A60HX6112SSLPQT EU Certification.pdfHoffman A60HX6112SSLPQT Grounding Kit Instructions.pdfHoffman A60HX6112SSLPQT Instruction Manual.pdfHoffman A60HX6112SSLPQT Large Enclosure Handling Manual.pdfHoffman A60HX6112SSLPQT Spec Sheet.pdfHoffman A60HX6112SSLPQT UL Certification.pdf
