Code: 158870

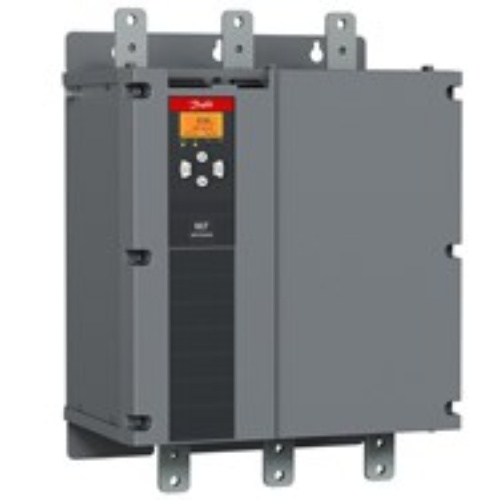

Danfoss 136Z4308 Soft Starter MCD6-1250-BT5-S3-X-0-CV2
Normally In Stock
Danfoss 136Z4308 Soft Starter 460 VAC 1000 HP@480V (Aprox), 800 HP@480V (Aprox) IP00
Condition: New
Usually ships in 7 days.$16626.29
Sale Price
$13855.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Danfoss 136Z4308 460 VAC Three Phase Input 1000 HP@480V (Aprox), 800 HP@480V (Aprox) IP00 110-240 VAC Control Voltage
Specifications
Starter VFD Input Phases
Three Phase Input
Starter Reversing Capability
Non Reversing
Manufacturer
Danfoss
Starter Voltage
460 VAC
Starter Housing
IP00
Starter Horsepower
800 HP @ 480 V
Starter Horsepower
1000 HP @ 480 V
Starter Coil Voltage (Control)
110-240 VAC
Component
Soft Starter
Starter Current Rating
1249 Amp
Starter Current Rating
971 Amp
Features
VLT® Soft Starter MCD 600
With Int. Bypass Contactor
1250 A Three phase 200-525 V AC
Frame size 3 IP00
Control Voltage: 110~120 VAC or 220~240 VAC
Other options according to Model code
VLT® Soft Starter MCD 600 is a total motor starting solution
Current transformers measure motor current and provide feedback for controlled motor ramp profiles
Adaptive Acceleration Control (AAC) automatically employs the best starting and stopping profile for the application
Emergency mode and Pump clean function are standard features
The optional remote control panel adds more functionality, such as the Start/Stop buttons, and quick jump buttons to menu options
VLT® Soft Starter MCD 600 is available in three enclosure sizes: S1, S2 and S3 S1: IP20 with built-in bypass contactor (20–129 A) S2: IP00 either with built-in bypass or non-bypass (144 –579 A)
S3: IP00 with built-in bypass, non-bypass or external bypass (590–1250 A) To achieve protection rating IP20 on connections, order the Finger Guard Kit as an accessory
