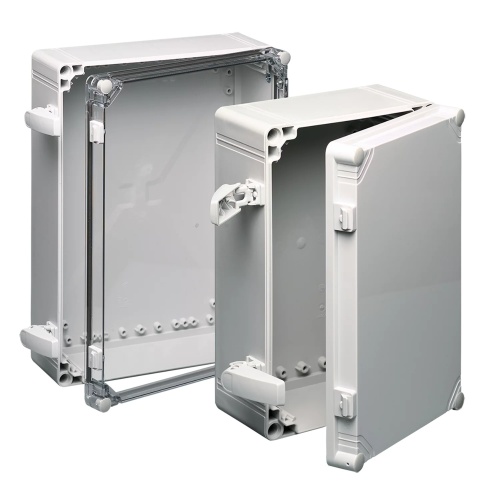

Hoffman Q604018ABICC QLINE I Non-Metallic ABS Enclosure
Hoffman Q604018ABICC Enclosure 23.15 x 15.28 x 6.81 inch (HxWxD) ABS QLINE I Type 4x Clear Enclosure with no hinge easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $417.30
Sale Price:
$303.99
Hoffman Q604018ABICC Enclosure 23.15 x 15.28 x 6.81 inch (HxWxD) ABS QLINE I Type 4x Clear Enclosure with no hinge easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
| Specifications | |
| Component | Non-Metallic Enclosure |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Depth | 7" |
| Enclosure Composition | ABS |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Line | Qline |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Width | 24" |
| Enclosure Height | 16" |
| Enclosure Latch Type | Screw |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
- Molded internal pads for mounting optional panels, rails and other components
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal rails for mounting adjustable-depth panel kit
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Screws provided for mounting optional panel
- Material is halogen free
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Cover includes a molded-in hole for wire lead
- Optional extension rings are molded polycarbonate
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Customer Reviews
0.0
All Reviews
Hoffman Q604018ABICC 2D DXF CAD.zip
Hoffman Q604018ABICC 3D STEP CAD.zip
Hoffman Q604018ABICC CSA Certification.pdf
Hoffman Q604018ABICC Declaration of Compliance.pdf

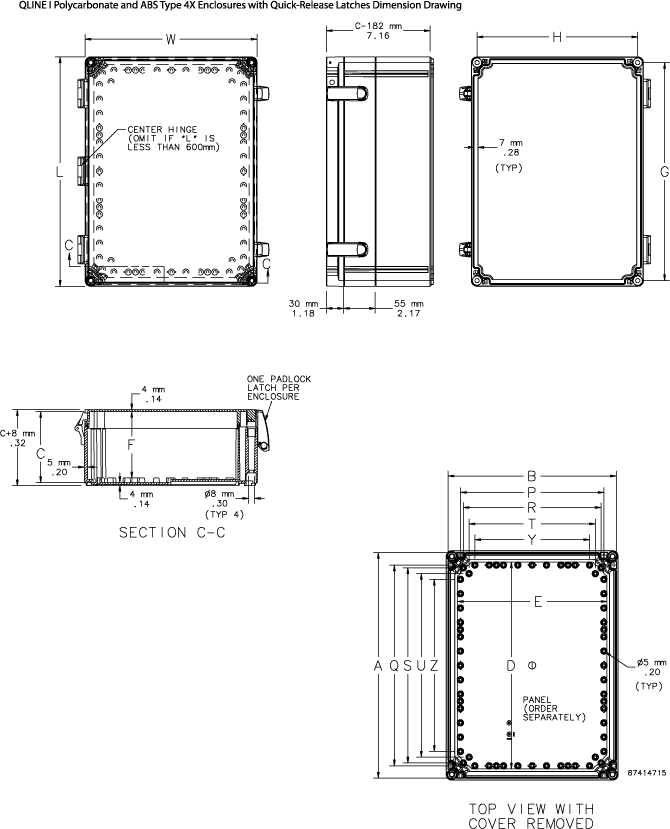

Hoffman Q604018ABICC Dimension Drawing.gif
Hoffman Q604018ABICC EU Certification.pdf
Hoffman Q604018ABICC Spec Sheet.pdf
Hoffman Q604018ABICC UL Certification.pdf
