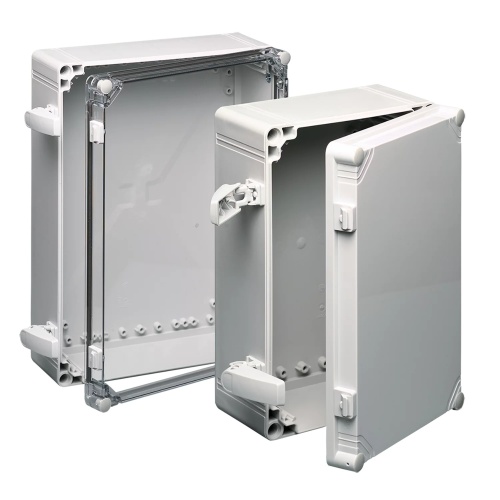

Hoffman Q403013ABICC QLINE I Non-Metallic ABS Enclosure
Hoffman Q403013ABICC Enclosure 15.28 x 11.34 x 4.84 inch (HxWxD) ABS QLINE I Type 4x Clear Enclosure with no hinge easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $241.80
Sale Price:
$176.15
Hoffman Q403013ABICC Enclosure 15.28 x 11.34 x 4.84 inch (HxWxD) ABS QLINE I Type 4x Clear Enclosure with no hinge easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
| Specifications | |
| Component | Non-Metallic Enclosure |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Lock Type | Padlocking |
| Enclosure Depth | 5" |
| Enclosure Interior Color | Gray |
| Enclosure Composition | ABS |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Height | 12" |
| Enclosure Width | 16" |
| Line | Qline |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Latch Type | Screw |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
- Molded internal pads for mounting optional panels, rails and other components
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal rails for mounting adjustable-depth panel kit
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Screws provided for mounting optional panel
- Material is halogen free
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Cover includes a molded-in hole for wire lead
- Optional extension rings are molded polycarbonate
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Customer Reviews
0.0
All Reviews
Hoffman Q403013ABICC 2D DXF CAD.zip
Hoffman Q403013ABICC 3D STEP CAD.zip
Hoffman Q403013ABICC CSA Certification.pdf
Hoffman Q403013ABICC Declaration of Compliance.pdf

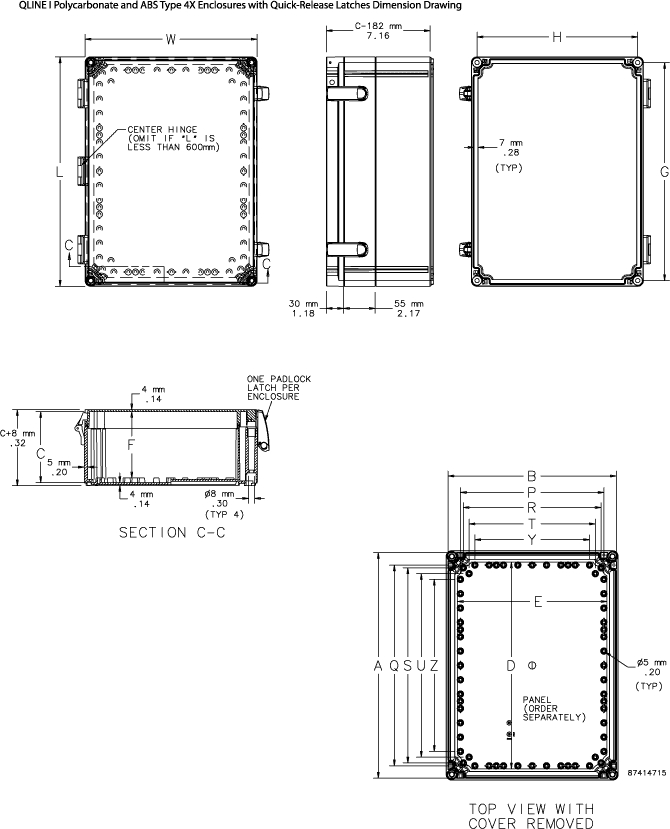

Hoffman Q403013ABICC Dimension Drawing.gif
