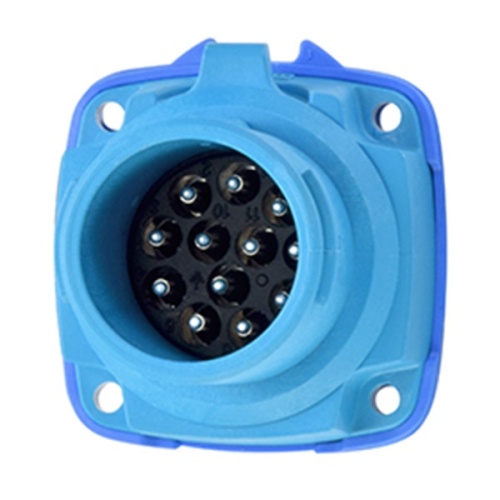

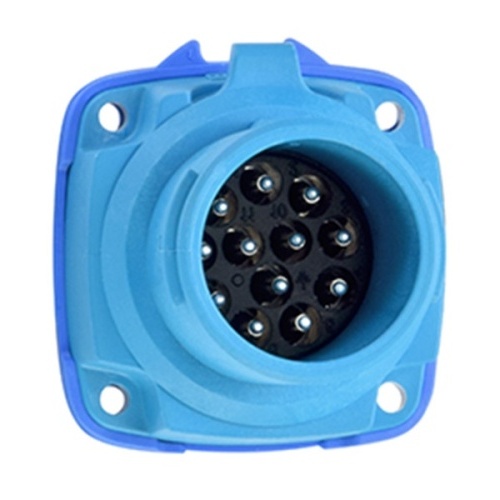

Meltric 63-A8001 Multipin DSN12c Inlet 480 VAC/130 VDC 2A/7.5A Blue Poly
Normally In Stock
Code: 158011
Meltric 63-A8001 Multipin DSN12c Inlet 480 VAC/130 VDC 2A/7.5A Blue Poly
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$247.87
Sale Price
$206.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Meltric 63-A8001 Multipin DSN12c Inlet 480 VAC/130 VDC 2A/7.5A Size 1 11P+G Blue Poly IP66,IP67,IP69 Solder/Crimp Terminal UL 498,UL 1682
Specifications
Receptacle Color
Blue
Receptacle Contact Configuration
11P+G
Receptacle Wiring Connection Type
Solder/Crimp Terminal
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Size
Size 1
Receptacle Composition
Poly
Receptacle Min Wire Size
18 AWG
Receptacle Max Wire Size
14 AWG
Receptacle Voltage
480 VAC/130 VDC
Receptacle IP Rating
IP69
Manufacturer
Meltric
Receptacle Amperage
2 Amp/7.5 Amp
Component
Inlet
Meltric Series
DSN12C Multipin
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
