Phoenix Contact 2967604 Relay module PLC-RSC- 24DC/ 1IC/ACT
Normally In Stock
Code: 1574
Phoenix Contact 2967604 Electromagnetic Relay 24 VDC Coil 1 Pole Single Throw
Condition: New
Usually ships Same Day or Next Day $45.59
Sale Price
$37.99
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

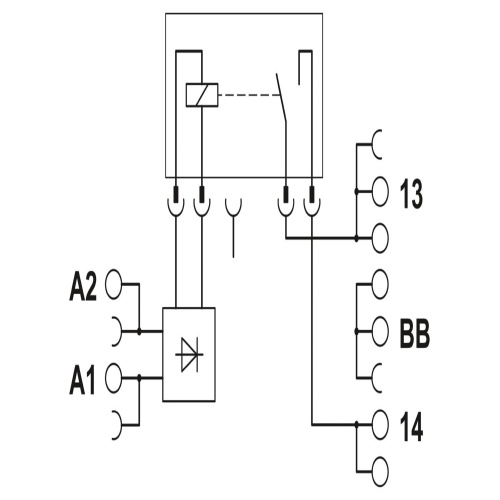

Phoenix Contact 2967604 The PLC-Interface for high switch-on currents is a component that includes a PLC-BSC IC and an ACT basic terminal block with a screw connection and plug-in miniature relay. This device can be mounted on a DIN rail NS 35/7,5 and has a maximum switch-on current of up to 130 A, featuring one N/O contact and operating at an input voltage of 24 V DC.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Screw Connection
Relay Application
Input Function
Relay Poles
Single Pole
Component
Relay Module-Electromagnetic
Manufacturer
Phoenix Contact
Relay Throws
Single Throw Normally Open
Relay Input Amperage
18 Mamp
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
250 Volt
Relay Load Voltage DC Rating
250 Volt
Features
Direct connection of load return line thanks to actuator version
Efficient connection to system cabling using V8 adapter
Safe isolation between coil and contact side

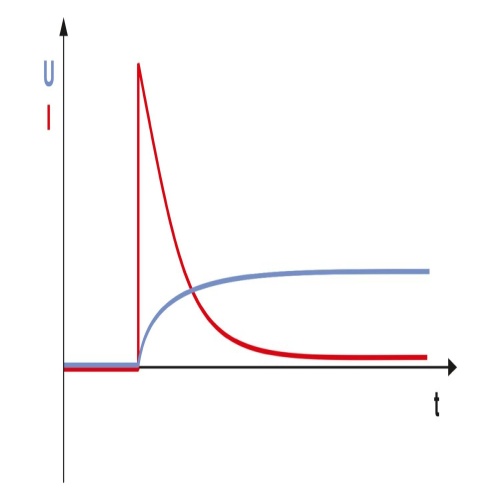

Max. inrush current of 130 A
Functional plug-in bridges
Downloads
Phoenix 2967604 Application Note English-2.pdfPhoenix 2967604 Application Note English.pdfPhoenix 2967604 CAD data International.dxfPhoenix 2967604 CAD data International.pdfPhoenix 2967604 CAD data International.stpPhoenix 2967604 CAD Drawing.dxfPhoenix 2967604 Manufacturers declaration English.pdfPhoenix 2967604 Manufacturers declaration International.pdfPhoenix 2967604 Package Slip International.pdfPhoenix 2967604 Product Information English.pdfPhoenix 2967604 Spec Sheet.pdfPhoenix 2967604 Tender Text English.zipPhoenix 2967604 User Manual.pdfPhoenix 2967604 Various International.pdf
