Code: 156664

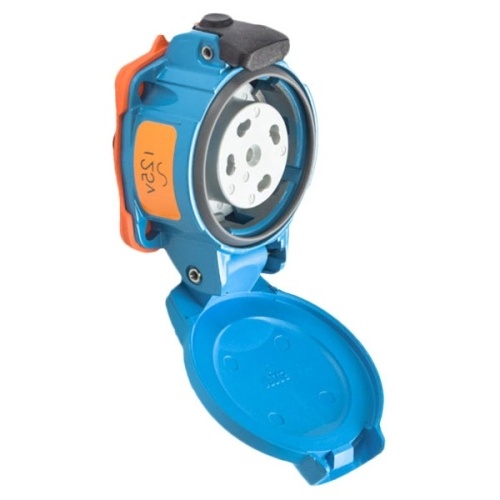

Meltric 09-N4075 Standard Duty PN20 Receptacle 125 VAC 20A Blue Metal
Normally In Stock
Meltric 09-N4075 Standard Duty PN20 Receptacle 125 VAC 20A Blue Metal
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$162.60
Sale Price
$135.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 09-N4075 Standard Duty PN20 Receptacle 125 VAC 20A Size 1 1P+N+G Blue Metal IP66,IP67 Screw Terminal Standard Pawl UL 498,UL 1682
Specifications
Receptacle Composition
Metal
Receptacle Color
Blue
Receptacle Amperage
20 Amp
Receptacle Contact Configuration
1P+N+G
Receptacle Voltage
125 VAC
Receptacle NEMA Type
Type 4X
Receptacle Wiring Connection Type
Screw Terminal
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Pawl Type
Standard Pawl
Receptacle Size
Size 1
Receptacle Min Wire Size
14 AWG
Receptacle Max Wire Size
8 AWG
Manufacturer
Meltric
Component
Receptacle
Meltric Series
PN20 Standard Duty
Features
Casing Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Silver-Nickel Contact Material Solid, silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Lid Provides additional protection from harsh environments
Spring-Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
