Phoenix Contact 3027941 Shield connection terminal block SK 14 VPE 300
Normally In Stock
Code: 156468

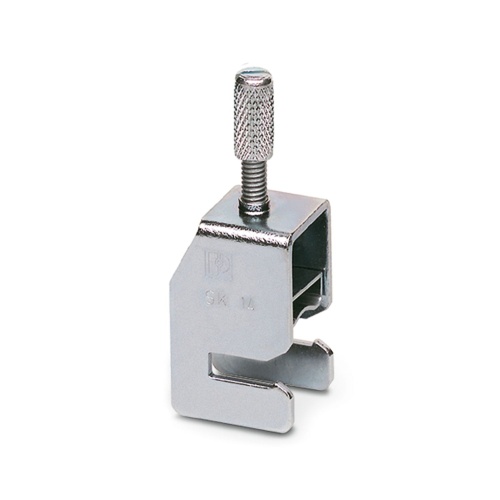

Phoenix Contact SK 14 VPE 300 Shield connection clamp - Silver - 3027941
Condition: New
Usually Ships Same day or Next Day$31.20
Sale Price
$26.00
MUST BUY IN PACKS OF 300
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3027941 Shield connection clamp, for shield on busbars, contact resistance < 1 mΩ
Specifications

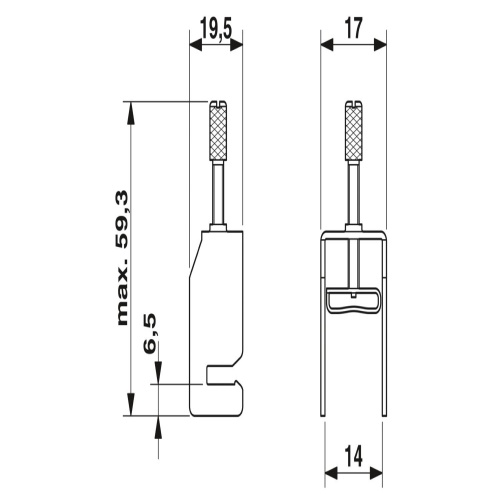

Terminal Block Width
17 mm
Jumper Pitch
17 mm
Terminal Block Component Color
Silver
Manufacturer
Phoenix Contact
Component
Shield Connection Clamp
Features
Easy handling
Spring-loaded, large-surface pressure plate
Suitable for direct and busbar mounting
Knurled screw
As components, it is not possible to certify shield connections in accordance with the requirements of the directive and standards for electrical equipment in potentially explosive areas. As such, shield connection clamps can be used in the Ex area even without an appropriate approval or marking.
Code: 156468
Phoenix Contact 3027941 Shield connection terminal block SK 14 VPE 300
$31.20
Sale Price
$26.00
MUST BUY IN PACKS OF 300
