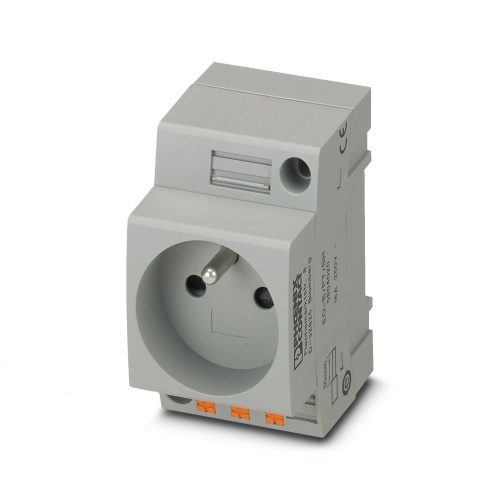

Phoenix Contact 0804020 Socket EO-E/PT/SH
Normally In Stock
Code: 155180
Phoenix Contact 0804020 EO-E/PT/SH gray ,CuZn37,PA Socket (MUST BUY IN PACKS OF 5)
Condition: New
Usually ships Same Day or Next Day$13.08
Sale Price
$10.90
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0804020 The socket has an extended touch protection/shutter, is connected using a push-in spring connection type E pattern, and features a gray color. It operates at 250 V AC (50 Hz) with a nominal current of 16 A and can be mounted on a DIN rail or directly to the service interface. The product meets standards/specifications set by NF C61-314 and IEC 60884-1, and is marked for use in France.
Specifications
Outlet Color
Gray
Outlet Mounting
Din Rail
Outlet Voltage Rating
250 Volt
Outlet Amperage Rating
16 Amp
Manufacturer
Phoenix Contact
Outlet Number of Receptacles
1 Receptacle
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
