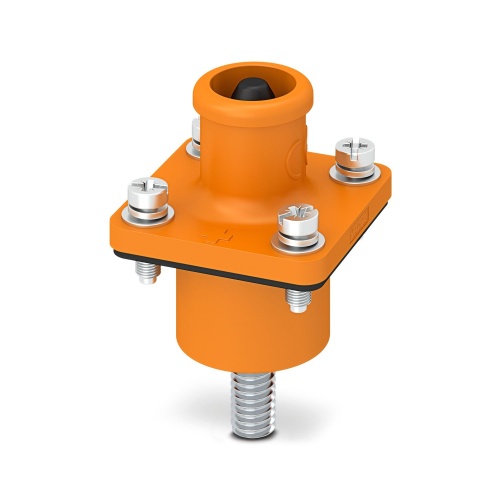

Phoenix Contact 1106303 Connector ES-FT-BPC-S 16-25 OG
Normally In Stock
Code: 154931
Phoenix Contact 1106303 - Connector - 1 Position - 120 Amp - IP65 - Screw Connection
Condition: New
Usually ships Same Day or Next Day$16.56
Sale Price
$13.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1106303 The specified connector has an orange color, a single position, and can accommodate conductors with cross-sections ranging from 16 mm² to 25 mm². It is rated for 1500 volts and 120 amps of current, featuring a screw connection method and pin-type contact.
Specifications
Connector Material
Polyamide
Connector protection
IP65
Manufacturer
Phoenix Contact
Connector Amperage
120 Amp
Number of Positions
1
Component
Energy Storage Connector
Features
Patented design, with 3 proofs and one rotation
Mismatching and short circuit proof
Touch-proof
Foolproof mechanism installed
360° free rotation and flexible wiring
Safety lock
