Phoenix Contact 1788431 PCB header MVSTBU 2,5/11-GFB-5,08
Normally In Stock
Code: 154504

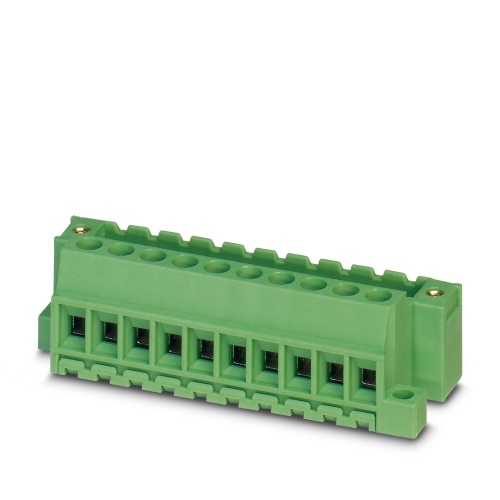

Phoenix Contact 1788431 MVSTBU 2,5/11-GFB-5,08 ,I,PA Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $28.69
Sale Price
$23.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1788431 The block has a nominal cross-sectional area of 2.5 mm² and is green in color, with a maximum current rating of 12 A and a voltage rating of up to 320 V. It features 11 terminals connected via screw connections with tension sleeves, measuring 5.08 mm apart, allowing for direct mounting on a PCB without any soldering or flipping required.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Component
Direct Plug-In Block
Manufacturer
Phoenix Contact
Number of Positions
11
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Direct plug-in blocks with mounting flanges for screw connection on mounting panels or unit housing
Can be combined with the MSTB 2,5 range
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known connection principle allows worldwide use
Allows connection of two conductors
