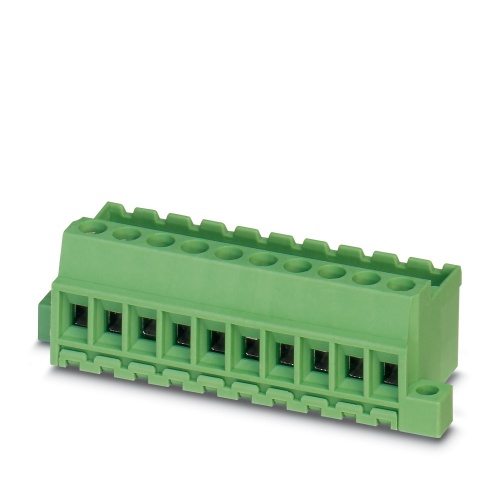

Phoenix Contact 1788664 PCB header MVSTBU 2,5/15-GB-5,08
Normally In Stock
Code: 154474
Phoenix Contact 1788664 MVSTBU 2,5/15-GB-5,08 ,I,PA Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $33.13
Sale Price
$27.61
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1788664 The product is a direct plug-in block with specifications including a nominal cross-sectional area of 2.5 mm² and a green color, featuring a nominal current rating of 12 A and a rated voltage of 320 V for III/2 protection. The contact surface material is Sn, with a pin connection type and 15 potential pins arranged in one row across 15 positions, requiring 15 connections, falling within the MVSTBU 2,5/...-GB product range, having a pitch of 5.08 mm and utilizing a screw connection with tension sleeve.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Component
Direct Plug-In Block
Manufacturer
Phoenix Contact
Number of Positions
15
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Direct plug-in blocks with mounting flanges for screw connection on mounting panels or unit housing
Can be combined with the MSTB 2,5 range
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known connection principle allows worldwide use
Allows connection of two conductors
