Code: 154220

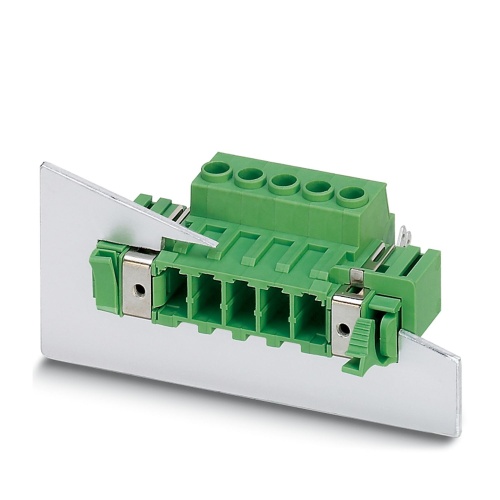

Phoenix Contact 1716742 Feed-through plug DFK-PC 5/ 4-STF-SH-7,62
Normally In Stock
Phoenix Contact 1716742 DFK-PC 5/ 4-STF-SH-7,62 ,Copper Alloy,PA,I Feed-through plug
Condition: New
Usually ships within 7-14 days. Call for ship time$15.58
Sale Price
$12.98
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1716742 A feed-through connector with a nominal cross-section of 6mm² has green color, is rated for 32A current and can withstand up to 1000V. It features Sn contact surfaces and pin-type connections with four positions and four rows, using a screw connection method with tension sleeve and Slotted Pozidriv screw head. The standard COMBICON PC 5 plug-in system is used along with a standard pin connector pattern alignment, shielded electrical properties, screw locking mechanism for securing, and screwed into flange mounting method packaged in cardboard.
Specifications
Connector Amperage
41 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
4
Number of Positions
4
Connector Voltage
630 Volt
Connector Voltage
1000 Volt
Component
Feed-Through Plug
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors

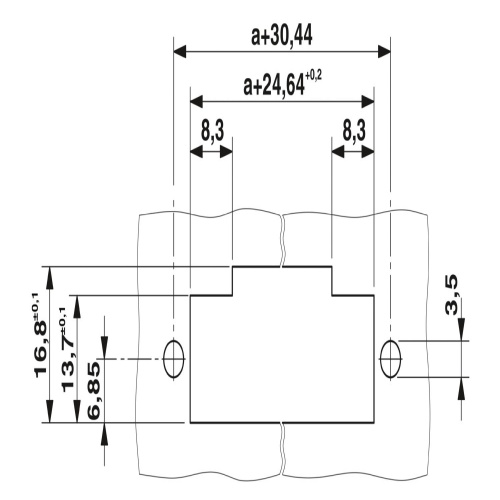

Flange system enables secure fixing to the housing panel by means of tool-free snap-in locking or screws
Shroud for professional EMC shield feed-through on the inside of the device
Screwable flange for superior mechanical stability
