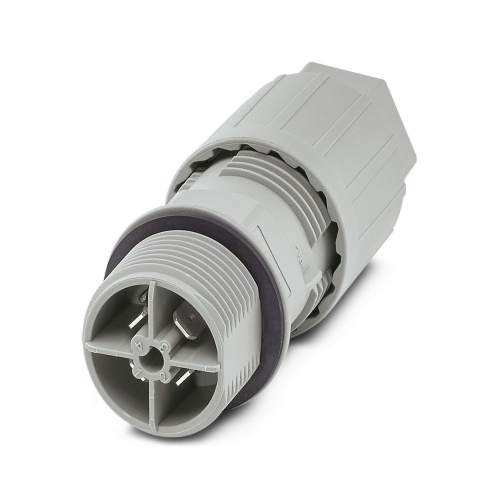

Phoenix Contact 1424001 Panel feed-through QPD W4X2,5 6-10 M25 FC GY
Normally In Stock
Code: 154109
Phoenix Contact 1424001 - Panel feed-through - 4 Positions - Cu - 16 AWG - IP66 - Spade Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$10.14
Sale Price
$8.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424001 The panel feed-through is part of the QPD product family and features a spade or IDC connection method, accompanied by an M25 pin with current ratings ranging from 1 to 20 A, colored gray and secured with a QUICKON nut. The external cable diameter varies between 6 to 10 mm and carries a 2.5 mm2 cross-sectional area.
Specifications
Component
Panel
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
