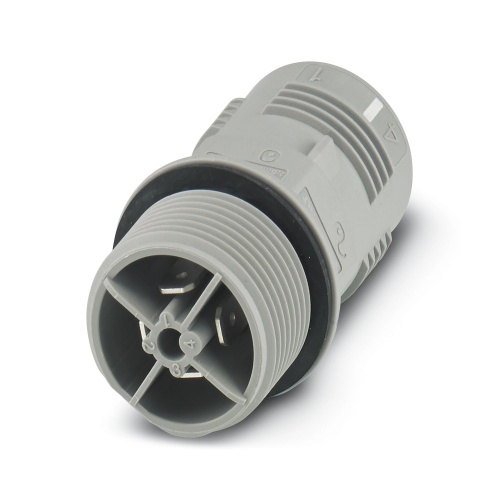

Phoenix Contact 1424010 Panel feed-through QPD W4X2,5 M25 FC GY
Normally In Stock
Code: 154054
Phoenix Contact 1424010 - Panel feed-through - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Spade Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$13.49
Sale Price
$11.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424010 The panel feed-through product family includes QPD units with a spade connection and M25 pin configuration. The available sizes range from 1 mm² to 2.5 mm² and are rated for 690 volts and 20 amps. These products have a PA (power) rating and are made of gray material, excluding the QUICKON nut, which indicates coding is applied with a size of 2.5 mm².
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
