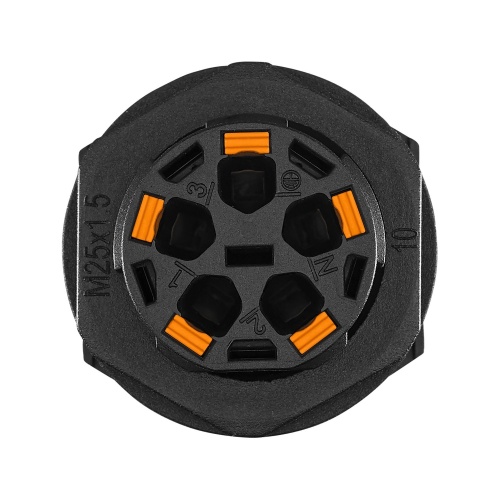

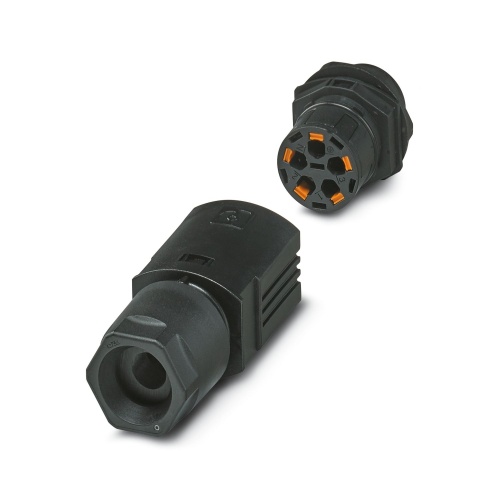

Phoenix Contact 1047345 Panel feed-through IPD WD 5P2,5 M25 BK
Normally In Stock
Code: 154053
Phoenix Contact 1047345 - Panel feed-through - 5 Positions - Cu - 20 AWG - 20 Amp - 600 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$17.38
Sale Price
$14.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047345 The panel feed-through features a direct connection method using push-in connections, available in various configurations including 4+PE, M25, with copper wire sizes ranging from 0.5mm² to 2.5mm², operating at 600V and 20A, and featuring a black color scheme. The external cable diameter ranges from 7mm to 11mm and 16mm.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
600 Volt
Features
Convenient: quick and easy assembly without special tools
Fast and easy startup, thanks to tool-free Push-in connection technology
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
