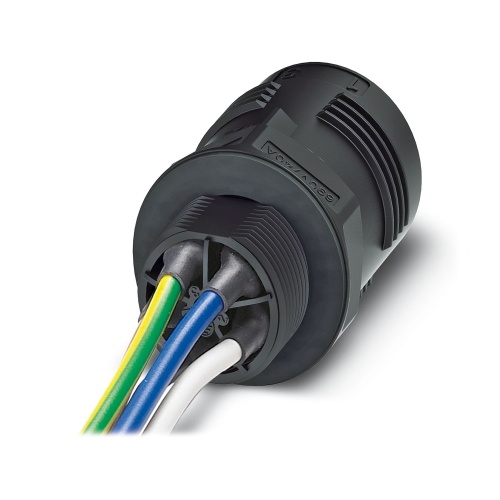

Phoenix Contact 1410396 Panel feed-through QPD W 4PE6,0 M25 0,5 BK
Normally In Stock
Code: 154052
Phoenix Contact 1410396 - Panel feed-through - 5 Positions - Cu - 14 AWG - 40 Amp - 690 V - IP66 - Individual Wire Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$38.26
Sale Price
$31.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1410396 The QUICKON panel feed-through has four or more PE-pos and is available in two different current ratings: 2.5mm² to 6.0mm²/690V/40A, without a quick-release nut, featuring a black M25 connection thread with five welded-on cable wires measuring 0.5m long, cut flat at the end.
Specifications
Component
Panel
Connector Amperage
40 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
