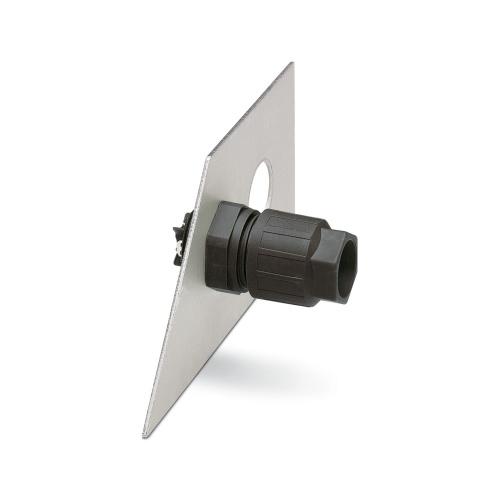

Phoenix Contact 1643000 Panel feed-through Q 1,5/4FL/24-M20KU-ESA BK
Normally In Stock
Code: 154043
Phoenix Contact 1643000 - Panel feed-through - 4 Positions - CuZn - 18 AWG - 15 Amp - 500 V - IP65 - Spade Connection
Condition: New
Usually ships Same Day or Next Day $16.22
Sale Price
$13.52
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

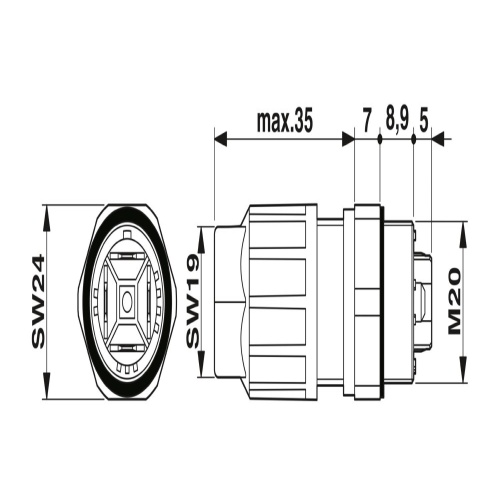

Phoenix Contact 1643000 A panel feed-through designed specifically for external panel mounting features a manual solder or slip-on connection mechanism allowing for easy attachment and detachment, measuring 4.8 x 0.8 mm with a M20x1.5 threaded connection that accommodates four positional contacts.
Specifications
Component
Panel
Connector Amperage
15 Amp
Connector Material
Cuzn
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
500 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP65/IP67 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
